制造商:
TE Connectivity
HPP845E031R4
湿度传感器, 3 V, 0% 至 100% 相对湿度, DFN, 6 引脚, 5 s
安富利制造商模型#:
HPP845E031R4
RoHS 6 Compliant

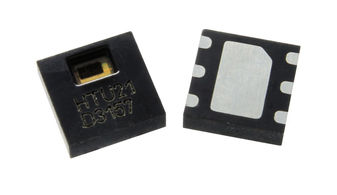

HPP845E031R4 is a HTU21D(F) digital relative humidity sensor with temperature output (I.C 21D RH/T digital). The HTU21D(F) is a new digital humidity sensor with temperature output by MEAS. HTU21D(F) digital humidity sensors are dedicated humidity and temperature plug and play transducers for OEM applications where reliable and accurate measurements are needed. Direct interface with a micro-controller is made possible with the module for humidity and temperature digital outputs. This low power sensor is designed for high volume and cost sensitive applications with tight space constraints. Every sensor is individually calibrated and tested. Typical applications include home appliance, medical, printers and humidifier.
技术参数
- Full interchangeability with no calibration required in standard conditions
- Instantaneous desaturation after long periods in saturation phase
- Compatible with automatized assembly processes, including Pb free and reflow processes
- Individual marking for compliance to stringent traceability requirements
- 3.8V supply voltage (peak)
- 0.014mA current consumption
- Humidity operating range from 0 to 100%RH
- Operating temperature range from -40 to 125°C [ -40 to 257°F ]
技术特性
查找类似的料号|
|
描述 | 值 |
|---|---|---|
|
|
最高工作温度 | 125 °C |
|
|
最小电源电压 | 1.5 |
|
|
引脚数 | 6 |
|
|
最大电源电压 | 3.6 |
|
|
湿度范围 | 0% to 100% Relative Humidity |
|
|
最低工作温度 | -40 °C |
|
|
传感器类型 | Relative |
|
|
产品范围 | HTU Series |
ECCN / UNSPSC
| 描述 | 值 |
|---|---|
| ECCN: | EAR99 |
| 计划交货期 B: | PARTS... |
| HTSN: | PARTS... |
