制造商:
TE Connectivity
640204-1

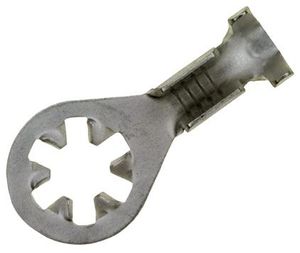

Ring Tongue Terminal 18-22AWG 19.61mm 9.4mm Tin Strip
安富利制造商模型#:
640204-1
RoHS 10 Compliant
This open barrel rings and spades are manufactured in strip form and supplied on reels for Automachine termination. In the standard “F” crimp configuration, the open barrel consists of two “U” shaped wings that are crimped around the conductor strands and butted together into a tight seam.
技术参数
- Reproducible crimping results
- High quality
- Reduced manufacturing costs
- No soldering required
- Type : F
- Wire Range AWG - mm2 : 22 - 18, 0.3 - 0.9
- Insulation Diameter : .080 - .120, 2.03 - 3.05
- Stud Size : 8
- Thickness : .025, 0.69
- Material : Tin
- Finish : Steel
- Proven crimp technology
- Large range of product configurations
- Excellent mechanical and electrical performance
- Recognized under the Component Recognition Program of Underwriters Laboratories Inc.
- Certified by Canadian Standards Association
技术特性
查找类似的料号|
|
描述 | 值 |
|---|---|---|
|
|
产品尺寸 | 19.61 x 9.4 mm |
|
|
主体材料 | Steel |
|
|
铅完成 | Tin |
|
|
产品长度 | 19.61 mm |
|
|
Wire Size | 22 to 18, 22 AWG |
|
|
Plating | Tin |
|
|
类型 | Ring Tongue Terminal |
|
|
Stud Size | 4 mm |
ECCN / UNSPSC
| 描述 | 值 |
|---|---|
| ECCN: | EAR99 |
| 计划交货期 B: | PARTS... |
| HTSN: | PARTS... |
