制造商:
TE Connectivity
63130-2
导线接片, 压接, 开放对接头
安富利制造商模型#:
63130-2
RoHS 10 Compliant

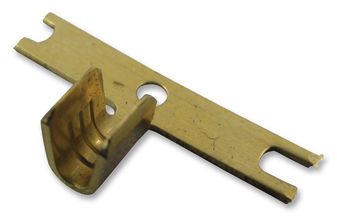

The 63130-2 is a Splice Terminal made of brass. This unplated open barrel side feed-through splice features crimp termination and accepts 1500 to 5000CMA wire.
技术参数
- Terminates stranded wire and/or solid wire combinations together or to leads on components or devices
- Side feed splices available for parallel connections.
- Type : A
- Wire Range mm2 : 0.76 - 2.53
- Wire Range CMA : 1500 - 5000
- Thickness : .020 - 0.51
- Available in brass material
- Precision formed, strip-fed splices terminated in AMP automatic machines for high production rates per hour
技术特性
查找类似的料号|
|
描述 | 值 |
|---|---|---|
|
|
产品尺寸 | 3.94 x 3.81 mm |
|
|
产品长度 | 3.94 mm |
|
|
类型 | Splice Terminal |
|
|
主体材料 | Brass |
ECCN / UNSPSC
| 描述 | 值 |
|---|---|
| ECCN: | EAR99 |
| 计划交货期 B: | PARTS... |
| HTSN: | PARTS... |
