制造商:
TE Connectivity
350536-1

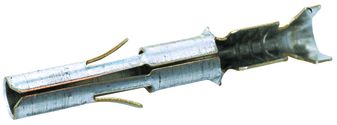

触芯, Universal MATE-N-LOK系列, 母, 压接, 14 AWG, 镀锡触芯, 通用Mate-N-Lok连接器
安富利制造商模型#:
350536-1
RoHS 10 Compliant
触芯, Universal MATE-N-LOK系列, 母, 压接, 14 AWG, 镀锡触芯, 通用Mate-N-Lok连接器
技术参数
- Wire Size : AWG 20 - 14 [.5 - 2.0]
- Dimension : .060 - .130, 1.52 - 3.30
- Pins and sockets can be intermixed in the same housing
- Positive polarization
- Rear cavity identification
- Contacts completely enclosed in housings
- Positive locking housings
- Insulation capability to .200 [5.08] diameter
- Removable, crimp snap-in contacts
- Low contact mating force
- Contacts accept 30-10 AWG [.05-5.0 mm2] wire sizes
- Contacts available with pretin or gold plating
- Dual locking lances provide optimum contact stability
- Panel mount or free-hanging
- Mate with Universal MATE-N-LOK II Housings
- Available in UL 94V-O flame retardant material.
- Not for interrupting current
- Harness to PC Board capability using pin or socket headers
- Pin and socket headers are available in both vertical and right-angle style
- Solderability — headers meet MIL-STD 202 Method 208
- Contacts are on .250 [6.35] centerline spacing
- Recognized under the Component Program of Underwriters Laboratories Inc.
- Certified by Canadian Standards Association
- Passed test by VDE under their Registration Number 3980/Continuous Surveillance
技术特性
查找类似的料号|
|
描述 | 值 |
|---|---|---|
|
|
工作温度 | -55 to 105 °C |
|
|
Body Orientation | Straight |
|
|
触点材料 | Brass |
|
|
铅完成 | Tin |
|
|
极性 | Socket |
|
|
终止方法 | Crimp |
|
|
触点电镀 | Tin |
|
|
系列名称 | 350536 |
|
|
产品尺寸 | 20.07 x 4.19 x 4.52 mm |
|
|
导体横截面积 | 0.52 to 2.08 mm² |
|
|
Wire Size | 20-14, 20 AWG |
|
|
产品长度 | 20.07 mm |
|
|
金属触芯类型 | Power |
|
|
Maximum Current Rating/Contact | 19 A |
|
|
连接器类型 | Power Connector |
|
|
安装 | Cable Mount |
|
|
Maximum Contact Resistance | 6 mOhm |
ECCN / UNSPSC
| 描述 | 值 |
|---|---|
| ECCN: | EAR99 |
| 计划交货期 B: | PARTS... |
| HTSN: | PARTS... |
