制造商:
TE Connectivity
1932258-1

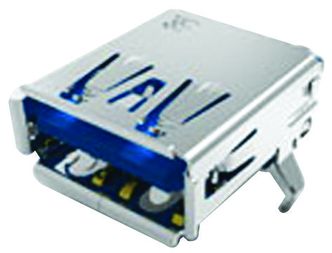

连接器, USB, USB A, USB 3.0, 插座, 9 路, 通孔安装, 直角型
安富利制造商模型#:
1932258-1
RoHS 10 Compliant
连接器, USB, USB A, USB 3.0, 插座, 9 路, 通孔安装, 直角型
技术参数
- Supports up to 5 Gbps
- 10X faster than USB 2.0
- Optimized power e ciency
- Backward compatible with USB 2.0
- Minimized connector from factor variations
技术特性
查找类似的料号|
|
描述 | 值 |
|---|---|---|
|
|
工作温度 | -55 to 105 °C |
|
|
极性 | Receptacle |
|
|
触点电镀 | Gold Flash Over Nickel Palladium |
|
|
终止方法 | Solder |
|
|
Pitch | 2|2.5 mm |
|
|
铅完成 | Matte Tin Over Nickel |
|
|
Body Orientation | Right Angle |
|
|
终端数量 | 9 |
|
|
类型 | USB Type A |
|
|
触点材料 | Copper Alloy |
|
|
USB | USB3.0 |
|
|
Number of Contacts | 9 |
|
|
系列名称 | 1932258 |
|
|
产品尺寸 | 14.63 x 16.48 x 7.25 mm |
|
|
Base/Housing Material | Thermoplastic|Stainless Steel |
|
|
Number of Ports | 1 |
|
|
最高加工温度 | 260 °C |
|
|
产品长度 | 14.63 mm |
|
|
安装 | Through Hole |
ECCN / UNSPSC
| 描述 | 值 |
|---|---|
| ECCN: | EAR99 |
| 计划交货期 B: | PARTS... |
| HTSN: | PARTS... |
