制造商:
TE Connectivity

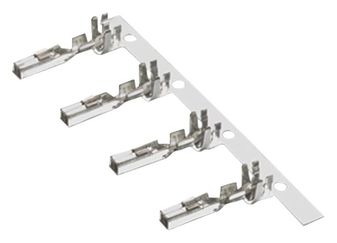

177915-1
矩形电源连接, Power Double Lock系列, 镀锡触芯, 铜合金, 母, 压接, 20 AWG
安富利制造商模型#:
177915-1
RoHS 10 Compliant
The power double lock connectors are available in wire-to-wire, free-hanging, panel mount and wire-toboard configurations. This connector system consists of plug and cap housings for wire termination, optional double lock plates, crimp contacts and PC board pin headers, and is available in four contact centerline spacings: 3.96 mm, 6.5 mm, 7.92 mm and 13.00 mm. The power double lock connector system accepts 26-16 AWG wire with insulation diameters up to 3.1 mm and is rated up to 14 Amps per line.
技术参数
- Discrete wire interconnect available in 1-12 position wire-to-board and wire-to-wire
- Audible click when contact is fully inserted into the housing
- Polarizing ribs on plug housing allows for proper mating
- Solder tail kink along with the polarization peg (boss) feature, secures the header on the board during the solder process
- Board-mounted headers are compatible with resin or conformal coatings — No drain holes
- Multiple colors available for ease of connector identification during assembly and maintenance
- UL, CSA and VDE approved
技术特性
查找类似的料号|
|
描述 | 值 |
|---|---|---|
|
|
Shielded | No |
|
|
极性 | Receptacle |
|
|
终止方法 | Crimp |
|
|
Body Orientation | Straight |
|
|
触点材料 | Copper Alloy |
|
|
产品长度 | 14.7 mm |
|
|
Contact Size | 12 |
|
|
Wire Size | 20 to 16, 20 AWG |
|
|
工作温度 | -30 to 105 °C |
|
|
产品尺寸 | 14.7 x 4 x 3.6 mm |
|
|
安装 | Cable Mount |
|
|
金属触芯类型 | Power |
|
|
连接器类型 | Connector Power |
|
|
触点电镀 | Pre-Tin |
ECCN / UNSPSC
| 描述 | 值 |
|---|---|
| ECCN: | EAR99 |
| 计划交货期 B: | PARTS... |
| HTSN: | PARTS... |
