制造商:
Pulse Electronics

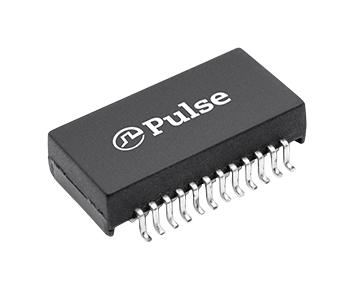

HX5084NL
Ethernet & LAN Transformer, 10/100/1000 Base-T PoE, 1 Port, 1:1, 350 µH, 1.5 kV, Surface Mount
安富利制造商模型#:
HX5084NL
RoHS 10 Compliant
Ethernet & LAN Transformer, 10/100/1000 Base-T PoE, 1 Port, 1:1, 350 µH, 1.5 kV, Surface Mount
技术特性
查找类似的料号|
|
描述 | 值 |
|---|---|---|
|
|
Maximum Insertion Loss | -1.2@100KHz dB |
|
|
Maximum OCL Inductance | 0.35(Min) mH |
|
|
Minimum Return Loss | -16@0.1MHz to 40MHz dB |
|
|
Transformer Type | 1000Base-T Single Port Ethernet Magnetic Transformer |
|
|
Minimum CMRR | -50@2MHz dB |
|
|
Minimum Crosstalk | -50@1MHz dB |
ECCN / UNSPSC
| 描述 | 值 |
|---|---|
| ECCN: | EAR99 |
| 计划交货期 B: | 8504312000 |
| HTSN: | 8504312000 |
