制造商:
Panasonic

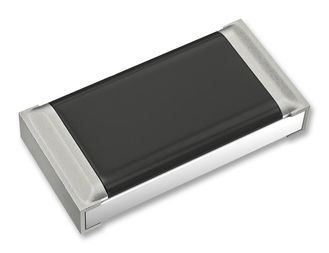

ERJU030R00V
Zero Ohm Resistor, Jumper, 0603 [1608 Metric], Thick Film, 100 mW, 1 A, Surface Mount Device
安富利制造商模型#:
ERJU030R00V
RoHS 10 Exempt
Zero Ohm Resistor, Jumper, 0603 [1608 Metric], Thick Film, 100 mW, 1 A, Surface Mount Device
技术参数
- High resistance to sulfurization achieved by adopting an Ag-Pd-based inner electrode (ERJU type)
- High reliability
- Metal glaze thick film resistive element and three layers of electrodes
- Suitable for both reflow and flow soldering
- Low Resistance type ERJU6S, U6Q : 0.1 Ω to 1.0 Ω
- Reference Standard IEC 60115-8, JIS C 5201-8, EIAJ RC-2134B
- AEC-Q200 qualified
- RoHS compliant
技术特性
查找类似的料号|
|
描述 | 值 |
|---|---|---|
|
|
产品长度 | 1.6 mm |
|
|
电阻技术 | Thick Film |
|
|
产品范围 | ERJ U Series |
|
|
产品宽度 | 0.8 mm |
|
|
最高工作温度 | 155 °C |
|
|
最低工作温度 | -55 °C |
|
|
电阻安装 | Surface Mount |
|
|
目前评级 | 1 A |
|
|
额定功率 | 0.1 mW |
|
|
电阻器外壳/封装 | 603 |
ECCN / UNSPSC
| 描述 | 值 |
|---|---|
| ECCN: | EAR99 |
| 计划交货期 B: | PARTS... |
| HTSN: | PARTS... |
