制造商:
Panasonic
EEUFC1J331

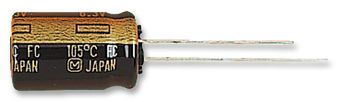

Aluminum Electrolytic Capacitor, 330 uF, 63 V, ± 20%, 5000 hours @ 105°C, Radial Leaded
安富利制造商模型#:
EEUFC1J331
RoHS 10 Compliant
The Panasonic EEUFC series capacitors are automotive grade, radial polarized aluminium electrolytic capacitors. The capacitance value ranges from 1µF to 1500µF. These capacitors are solution for low impedance solutions.
技术参数
- High reliability
- Low impedance
- Automotive grade AEC-Q200 compliant
- Tolerance of ±20%
- Endurance of 1000h to 5000h at 105°C
- Operating temperature range -55°C to 105°C
- Rated voltage range of 6.3VDC to 100VDC
技术特性
查找类似的料号|
|
描述 | 值 |
|---|---|---|
|
|
产品直径 | 12.5 mm |
|
|
电容容差 | 20% |
|
|
电容器端子 | PC Pin |
|
|
最低工作温度 | -55 °C |
|
|
电容 | 330 uF |
|
|
寿命@温度 | 5000 hours @ 105°C |
|
|
极性 | Polar |
|
|
产品宽度 | 12.5 x 20 |
|
|
最高工作温度 | 105 °C |
|
|
电压(DC) | 63 V |
|
|
纹波电流 | 1285 mA |
|
|
引线间距 | 5 mm |
ECCN / UNSPSC
| 描述 | 值 |
|---|---|
| ECCN: | EAR99 |
| 计划交货期 B: | PARTS... |
| HTSN: | PARTS... |
