制造商:
Panasonic
16SVPG47M
PIC16SVPG47M
安富利制造商模型#:
16SVPG47M
RoHS 6 Compliant

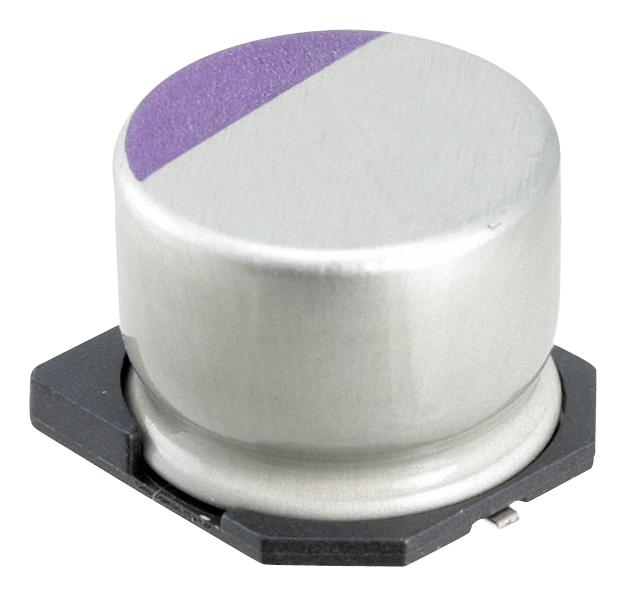

16SVPG47M is an OS-CON™ SVPG series surface mount type conductive polymer aluminium solid capacitor. It offers low ESR and a high ripple current with an endurance of 5000h at 105°C. This OS-CON™ capacitor utilizes aluminium and a highly conductive polymer material to offer low ESR, excellent noise reduction and ripple current capabilities. The OS-CON™ series parts are characterized by a long-life and minimal ESR changes throughout the entire product line’s rated temperature range.
技术参数
- Low profile (height 4.5mm max), low ESR, high ripple current
- 47μF rated capacitance (±20%), 3200mA ripple current, 25mohm ESR
- 16V voltage rating
- 5000 at 105°C endurance at temperature-1
- Category temperature range from -55°C to +105°C
- 150µA leakage current
- 5mm diameter, 4.4mm body length
ECCN / UNSPSC
| 描述 | 值 |
|---|---|
| ECCN: | EAR99 |
