制造商:
onsemi
SZESD7951ST5G

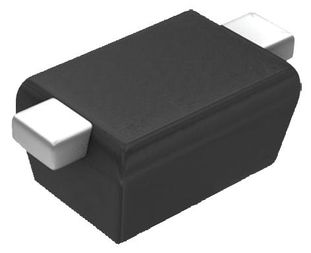

ESD Protection Device, 12.9 V, SOD-923, 2 Pins, 5 V, 150 mW, 0.9 pF
安富利制造商模型#:
SZESD7951ST5G
RoHS 10 Compliant
NCNR
Obsolete
The ESD7951 is designed to protect voltage sensitive components that require ultra-low capacitance from ESD and transient voltage events. Excellent clamping capability, low capacitance, low leakage and fast response time, make these parts ideal for ESD protection on designs where board space is at a premium. Because of its low capacitance, it is suited for use in high frequency designs such as USB 2.0 high speed and antenna line applications.
技术参数
- Ultra Low Capacitance 0.5pF
- Low Clamping Voltage
- Low Leakage
- IEC6100042 Level 4 ESD Protection
技术特性
查找类似的料号|
|
描述 | 值 |
|---|---|---|
|
|
最高工作温度 | 125 °C |
|
|
引脚数 | 2 |
|
|
方向 | Bidirectional |
|
|
最低工作温度 | -55 °C |
|
|
Number of Elements per Chip | 1 |
|
|
安装 | Surface Mount |
|
|
电容 | 0.9 pF |
|
|
资质 | AEC-Q101 |
ECCN / UNSPSC
| 描述 | 值 |
|---|---|
| ECCN: | EAR99 |
| 计划交货期 B: | 8541100050 |
| HTSN: | 8541100050 |
文档
您需要登录才能查看内容
文档
| 标题 | 下载 | 类别 | 发布日期 |
|---|---|---|---|
| Update Case Outline Drawing for SOD-923 Package sta..ng a note that L value should not be exceeding 0.30mm. | Errata-Sheets | 20200903 |
