制造商:
onsemi

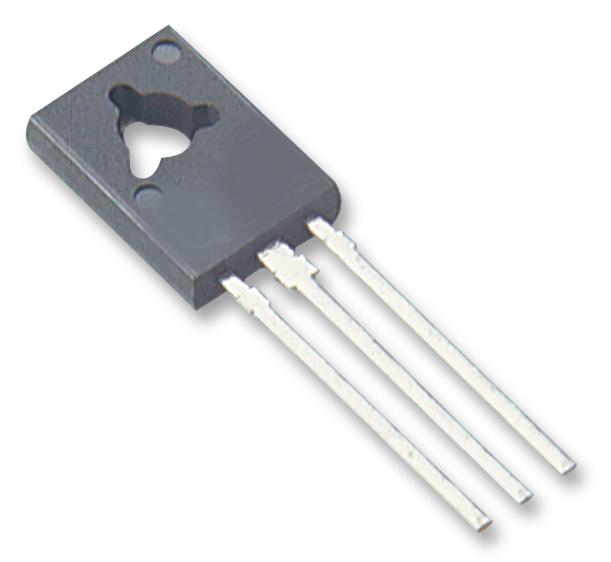

MJE270G
Trans GP BJT NPN 100V 2A 3-Pin TO-225 Bulk
安富利制造商模型#:
MJE270G
RoHS 10 Compliant
The Bipolar Power Transistor is designed specifically for use with the MC3419 Solid-State Subscriber Loop Interface Circuit (SLIC).The MJE270 (NPN) and MJE271 (PNP) are complementary devices.
技术参数
- High Safe Operating Area IS/B @ 40 V, 1.0 s = 0.375 A - TO-126
- Collector-Emitter Sustaining Voltage
VCEO(sus) = 100 Vdc (Min) - High DC Current Gain
hFE @ 120 mA, 10 V = 1500 (Min) - Pb-Free Packages are Available
技术特性
查找类似的料号|
|
描述 | 值 |
|---|---|---|
|
|
最高工作温度 | 150 °C |
|
|
晶体管安装 | Through Hole |
|
|
引脚数 | 3 |
|
|
功率耗散 | 15 |
|
|
连续集电极电流 | 2 |
|
|
晶体管外壳样式 | TO-225 |
|
|
最大集电极发射极电压 | 100 |
|
|
直流电流增益hFE最小值 | 1500 |
|
|
晶体管极性 | NPN |
ECCN / UNSPSC
| 描述 | 值 |
|---|---|
| ECCN: | EAR99 |
| 计划交货期 B: | PARTS... |
| HTSN: | PARTS... |
