制造商:
onsemi
FUSB303TMX

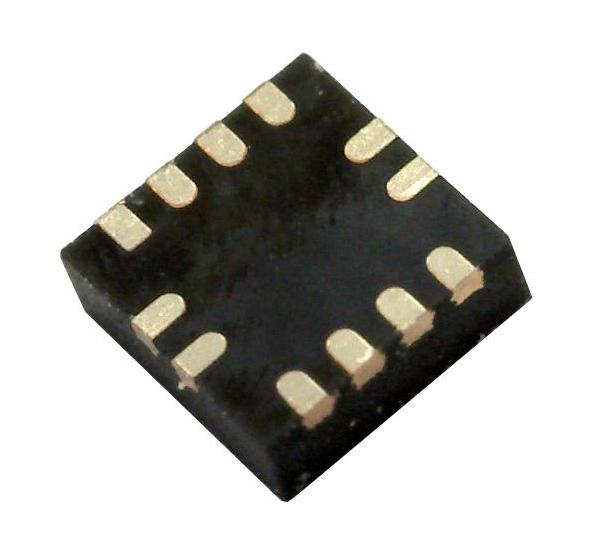

Autonomous USB Type-C Port Controller USB2.0/USB3.1 12-Pin X2QFN T/R
安富利制造商模型#:
FUSB303TMX
RoHS 10 Compliant
The FUSB303 device is a fully autonomous USB Type−C controller optimized for 15 W or less applications. The FUSB303 offers CC logic detection for Source Port role, Sink Port role, DRP, and accessory detection support, as well as Dead Battery support as defined in USB−C specifications. The FUSB303 features configurable address I2C access to support multiple ports per system or it can operate autonomously configured by just pins. The FUSB303 features ultra−low power during operation, and an ultra−thin, 12−Lead QFN package.
技术参数
- Fully Autonomous USB−C Port Controller
- Supports Latest Type−C Specification Release 1.3
- Source, Sink, and DRP Port role Configuration with Optional Accessory Support
- Try.SRC and Try.SNK modes for Preferring Source Role or Sink Role Respectively
- VDD Operating Range, 2.85 V − 5.5 V
- Typical Low Power Operation: ICC < 10 µA
- GPIO and I2C Configuration
- Max 28 V DC Tolerance on ID, VBUS_DET, CC1 and CC2
- Dead Battery Support (Sink Port role when No Power Applied)
- 4 kV HBM ESD Protection for Connector Pins
- Small Packaging, 12 Lead QFN (1.6 mm × 1.6 mm × 0.375 mm)
技术特性
查找类似的料号|
|
描述 | 值 |
|---|---|---|
|
|
引脚数 | 12 |
|
|
最小电源电压 | 2.85 |
|
|
最高工作温度 | 85 °C |
|
|
最大电源电压 | 5.5 |
|
|
最低工作温度 | -40 °C |
|
|
集成电路外壳/封装 | X2QFN |
ECCN / UNSPSC
| 描述 | 值 |
|---|---|
| ECCN: | EAR99 |
| 计划交货期 B: | 8542310000 |
| HTSN: | 8542310001 |
文档
您需要登录才能查看内容
文档
| 标题 | 下载 | 类别 | 发布日期 |
|---|---|---|---|
| Update FUSB303 datasheet to correct the top mark diagram, to fix typos error, to add editorial comments and additional note to clarify the register descriptions | Errata-Sheets | 20200227 |
