制造商:
onsemi
FUSB302B11MPX

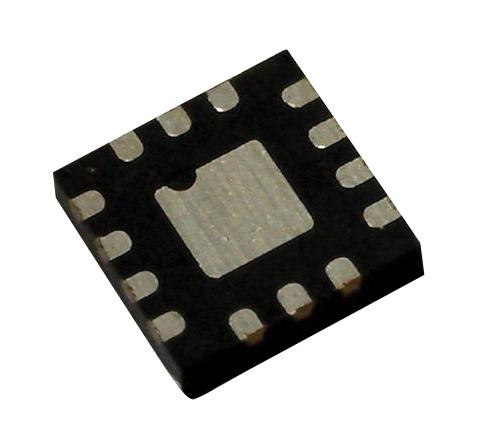

USB Controller, Programmable, USB Type-C, DRP, 2.7 V to 5.5 V, -40 to 125 °C, WQFN-14
安富利制造商模型#:
FUSB302B11MPX
RoHS 10 Compliant
The FUSB302B targets system designers looking to implement a DRP/SRC/SNK USB Type-C connector with low amount of programmability.
The FUSB302B enables the USB Type-C detection including attach, and orientation. The FUSB302B integrates the physical layer of the USB BMC power delivery protocol to allow up to 100 W of power and role swap. The BMC PD block enables full support for alternative interfaces of the Type-C specification.
技术参数
- Dual-Role Functionality with Autonomous DRP Toggle
- Ability to connect as either a host or a device based on what has been attached.
- Software configurable either as a dedicated host, dedicated device, or dual role.
- Dedicated devices can operate both on a Type-C receptacle or a Type-C plug with a fixed CC and VCONN channel.
- Full Type-C 1.2 Support. Integrates the following functionality of the CC pin
- Attach/Detach Detection as Host
- Current Capability Indication as Host
- Current Capability Detection as Device
- Audio Adapter Accessory Mode
- Integrates CCx to VCONN switch with over-current limiting for powering USB3.1 Full Featured cables.
- USB Power Delivery (PD) 2.0, Version 1.1 Support
- Dead Battery Support (SNK Mode Support when No Power Applied)
- Low Power Operation: ICC = 25 µA (Typical)
技术特性
查找类似的料号|
|
描述 | 值 |
|---|---|---|
|
|
数据率 | 5 |
|
|
最低工作温度 | -40 °C |
|
|
最大电源电压 | 5.5 |
|
|
集成电路外壳/封装 | MLP |
|
|
最小电源电压 | 2.7 |
|
|
最高工作温度 | 85 °C |
|
|
引脚数 | 14 |
ECCN / UNSPSC
| 描述 | 值 |
|---|---|
| ECCN: | EAR99 |
| 计划交货期 B: | 8542310000 |
| HTSN: | 8542310001 |
