制造商:
Nexperia
产品分类:
模拟开关和多路复用器,
模拟开关、多路复用器和解复用器

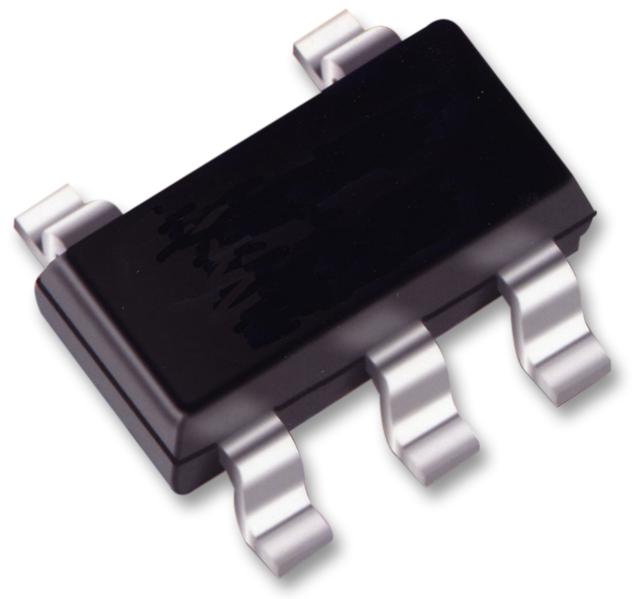

74AHC1G66GW-Q100H
Analog Switch Single SPST 5-Pin TSSOP T/R
安富利制造商模型#:
74AHC1G66GW-Q100H
RoHS 10 Compliant
74AHC1G66-Q100 and 74AHCT1G66-Q100 are high-speed Si-gate CMOS devices. They are single-pole single-throw analog switches. The switch has two input/output pins (Y and Z) and an active HIGH enable input pin (E). When pin E is LOW, the analog switch is turned off. This product has been qualified to the Automotive Electronics Council (AEC) standard Q100 (Grade 1) and is suitable for use in automotive applications.
技术参数
Automotive product qualification in accordance with AEC-Q100 (Grade 1) Specified from 40 C to +85 C and from 40 C to +125 C Very low ON resistance: 26 (typ.) at VCC = 3.0 V 16 (typ.) at VCC = 4.5 V 14 (typ.) at VCC = 5.5 V High noise immunity Low power dissipation Balanced propagation delays Multiple package options ESD protection: MIL-STD-883, method 3015 exceeds 2000 V HBM JESD22-A114F exceeds 2000 V MM JESD22-A115-A exceeds 200 V (C = 200 pF, R = 0 )
技术特性
查找类似的料号|
|
描述 | 值 |
|---|---|---|
|
|
Maximum High Level Output Current | 25 mA |
|
|
最大耗散功率 | 250 mW |
|
|
集成电路安装 | Surface Mount |
|
|
集成电路外壳/封装 | TSSOP |
|
|
资质 | AEC-Q100 |
|
|
最高工作温度 | 125 |
|
|
开关配置 | SPST - NO |
|
|
芯片功能 | Analog Switch |
|
|
通道数 | 1 |
|
|
引脚数 | 5 |
|
|
最低工作温度 | -40 |
|
|
产品范围 | AHC Series |
|
|
电源类型 | Single Supply |
|
|
Propagation Delay Test Condition | 50 pF |
|
|
Number of Channels per Chip | 1 |
|
|
Output Signal Type | Single |
|
|
电源电压范围 | 2V to 5.5V |
|
|
Maximum Frequency (25 deg C) @ Vcc | 280@5.5V|230@3.6V MHz |
|
|
Maximum Propagation Delay Bus to Bus | 5@2V|2@3.6V|1@5.5V ns |
|
|
最大导通电阻 | 50 |
ECCN / UNSPSC
| 描述 | 值 |
|---|---|
| ECCN: | EAR99 |
| 计划交货期 B: | 8542390000 |
| HTSN: | 8542390001 |
