制造商:
Murata

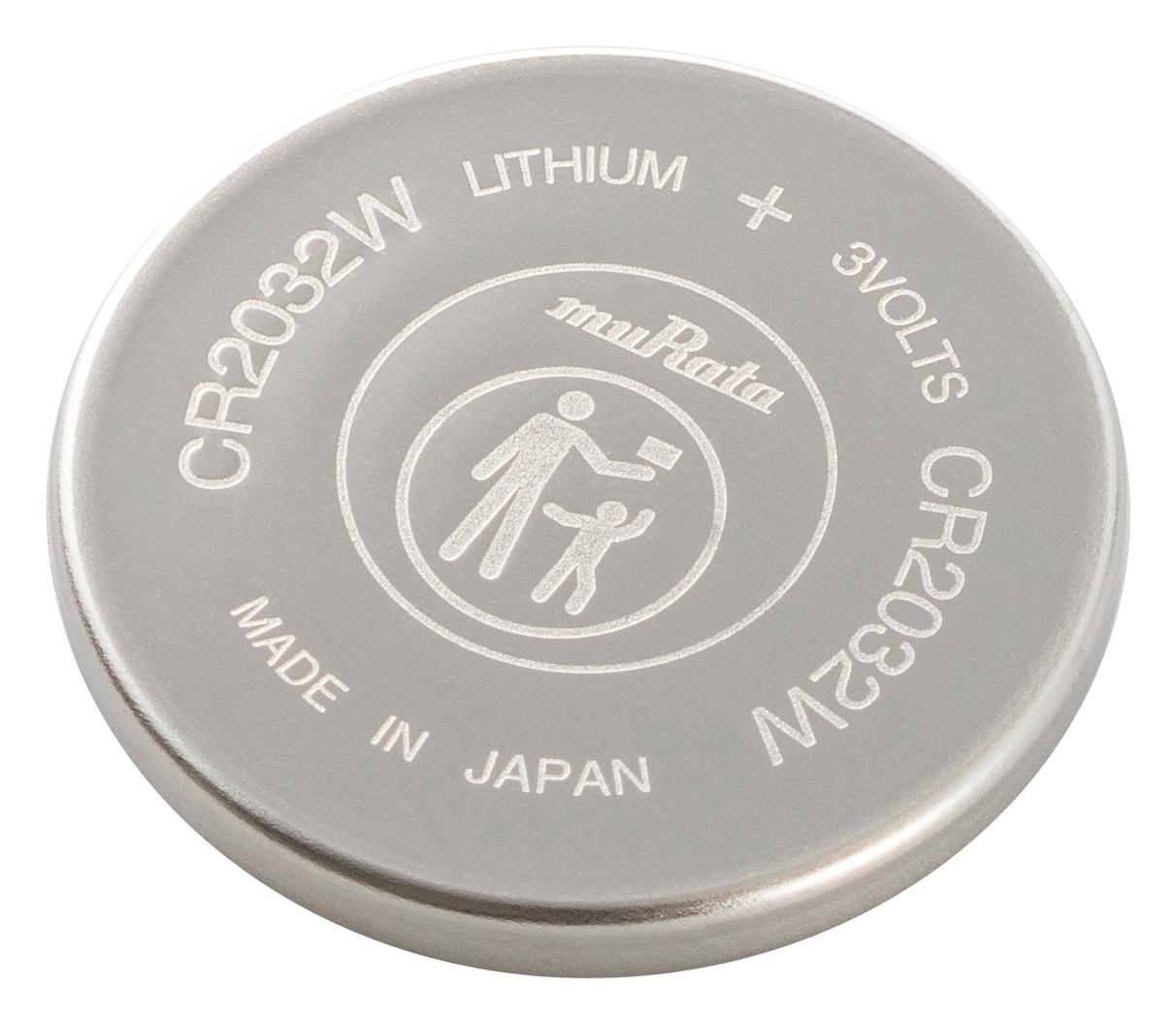

CR2032W
Battery Lithium Manganese Dioxide Coin 3V 210mAh Pressure Contact
安富利制造商模型#:
CR2032W
RoHS 6 Compliant
CR2032W is a coin manganese dioxide lithium battery. Applications include TPMS, ETC, FA, SRAM, TPMS (tire pressure monitoring system), ETC (electronic toll collection system), factory automation instruments, memory back-up power source for SRAM and real time clock (RTC) and other devices used in wide temperature environment.
技术参数
- 3.0V nominal voltage, 210mAh nominal capacity (2.0V cutoff)
- < 1mA recommended continuous discharge current (high capacity usage rate)
- 20mm diameter, 3.2mm height
技术特性
查找类似的料号|
|
描述 | 值 |
|---|---|---|
|
|
形状 | Coin |
|
|
Chemistry | Lithium Manganese Dioxide |
|
|
Voltage | 3 V |
|
|
筛选级别 | Extended Industrial |
|
|
产品尺寸 | 20 x 3.2 mm |
|
|
安装 | Holder |
|
|
Terminals | Pressure Contact |
|
|
工作温度 | -40 to 125 to 125 °C |
|
|
容量 | 210 mAh |
ECCN / UNSPSC
| 描述 | 值 |
|---|---|
| ECCN: | EAR99 |
文档
您需要登录才能查看内容
文档
| 标题 | 下载 | 类别 | 发布日期 |
|---|---|---|---|
| Safety Data Sheet CR Battery | User-Guides | 20200409 | |
| Caution CR Battery | User-Guides | 20200409 |
