制造商:
KEMET

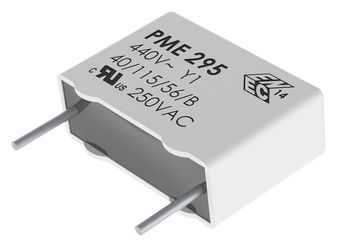

PME295RB4470MR30
Safety Capacitor, 4700 pF, 480 VAC, ± 20%, Y1, Metallized Paper, Radial Box - 2 Pin, Through Hole
安富利制造商模型#:
P295BQ472M440A
第二制造商零件#: P295BQ472M440A
RoHS 10 Compliant
The PME295 Series is constructed of multilayer metallized paper encapsulated and impregnated in self-extinguishing material meeting the requirements of UL 94 V-0.
技术参数
- Approvals: ENEC, UL, cUL
- Rated voltage: 440 VAC/480 VAC 50/60 Hz
- Capacitance range: 470 - 4700 pF
- Lead spacing: 15.0 mm
- Capacitance tolerance: ±20%
- Climatic category: 40/115/56/B, IEC 60068-1
- Tape and reel packaging in accordance with IEC 60286-2
- RoHS Compliant and lead-free terminations
- Operating temperature range of -40˚C to +115˚C
- 100% screening factory test at 4,000 VAC, 50 Hz, 2 seconds
技术特性
查找类似的料号|
|
描述 | 值 |
|---|---|---|
|
|
抑制类 | Y1 |
|
|
最低工作温度 | -40 °C |
|
|
dv/dt 等级 | 2000 V/us |
|
|
电容容差 | ± 20% |
|
|
额定电压 Y | 480 Vac |
|
|
电容器安装 | Through Hole |
|
|
引线间距 | 15 mm |
|
|
湿度等级 | GRADE II (Test Condition A) |
|
|
最高工作温度 | 115 °C |
|
|
电容器外壳/封装 | Radial Box - 2 Pin |
|
|
电容 | 4700 pF |
ECCN / UNSPSC
| 描述 | 值 |
|---|---|
| ECCN: | EAR99 |
| 计划交货期 B: | 8532250020 |
| HTSN: | 8532250020 |
文档
您需要登录才能查看内容
文档
| 标题 | 下载 | 类别 | 发布日期 |
|---|---|---|---|
| Kemet Capacitors for DC Applications Guide | Application-Guides | 20150315 | |
| Kemet High Temperature Capacitor Selection Guide | Selector-Guides | 20150315 |
