制造商:
KEMET
F861DJ105M310Z

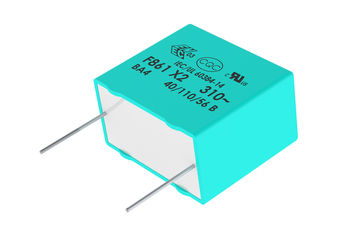

Safety Capacitor, 1 uF, 310 VAC, ± 20%, X2, Metallized PP, Radial Box - 2 Pin, Through Hole
安富利制造商模型#:
F861DJ105M310Z
RoHS 10 Compliant
NCNR
The F861 Series is constructed of metallized polypropylene film encapsulated with self-extinguishing resin in a box of material meeting the requirements of UL 94 V–0
技术参数
- Approvals: ENEC, UL, cUL, CQC
- Rated voltage: 310 VAC 50/60 Hz
- Capacitance range: 0.01 - 4.7 µF
- Lead spacing: 7.5 - 37.5 mm
- Capacitance tolerance: ±20%, ±10%
- Climatic category: 40/110/56, IEC 60068-1
- Tape and reel in accordance with IEC 60286-2
- RoHS Compliant and lead-free terminations
- Operating temperature range of -40˚C to +110˚C
- 100% screening factory test at 1,900 VDC
技术特性
查找类似的料号|
|
描述 | 值 |
|---|---|---|
|
|
电容 | 1 uF |
|
|
电容容差 | 20% |
|
|
额定电压 X | 310 Vac |
|
|
dv/dt 等级 | 200 V/us |
|
|
最高工作温度 | 110 °C |
|
|
电容器安装 | Through Hole |
|
|
湿度等级 | GRADE II (Test Condition A) |
|
|
引线间距 | 22.5 mm |
|
|
抑制类 | X2 |
|
|
最低工作温度 | -40 °C |
ECCN / UNSPSC
| 描述 | 值 |
|---|---|
| ECCN: | EAR99 |
| 计划交货期 B: | PARTS... |
| HTSN: | PARTS... |
文档
您需要登录才能查看内容
文档
| 标题 | 下载 | 类别 | 发布日期 |
|---|---|---|---|
| Kemet Capacitors for DC Applications Guide | Application-Guides | 20150315 | |
| Kemet High Temperature Capacitor Selection Guide | Selector-Guides | 20150315 |
