制造商:
Amphenol
AT04-3P-RJ120BK

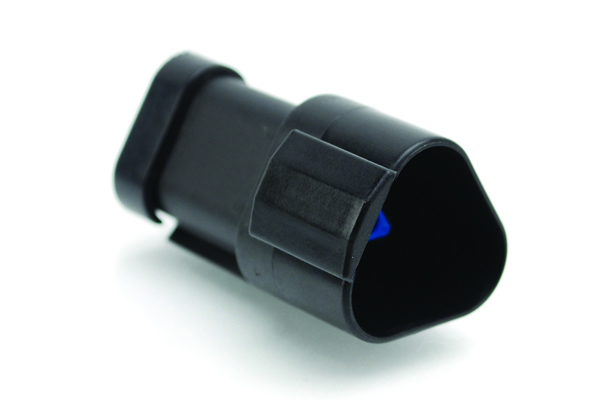

3-Way Receptacle, Black Male Connector with 120 OHM Terminating Resistor (J1939)
安富利制造商模型#:
AT04-3P-RJ120BK
RoHS 10 Compliant
3-Way Receptacle, Black Male Connector with 120 OHM Terminating Resistor (J1939)
技术特性
查找类似的料号|
|
描述 | 值 |
|---|---|---|
|
|
安装 | Cable Mount |
|
|
极性 | Receptacle |
|
|
Housing Color | Black |
|
|
Body Orientation | Straight |
|
|
Base/Housing Material | Thermoplastic |
|
|
工作温度 | -55 to 125 °C |
|
|
产品尺寸 | 21.02 x 44.7 x 24.43 |
|
|
产品长度 | 21.02 mm |
ECCN / UNSPSC
| 描述 | 值 |
|---|---|
| ECCN: | EAR99 |
| 计划交货期 B: | 8536694030 |
| HTSN: | 8536694030 |
文档
您需要登录才能查看内容
文档
| 标题 | 下载 | 类别 | 发布日期 |
|---|---|---|---|
| AT04-3P-RJ120BK 3D Model | Symbols and Footprints | 20230202 | |
| ahd-J1939-flyer-2017 | Flyers | 20230202 |
