制造商:
Abracon

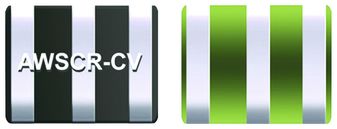

AWSCR-12.00CV-T
Resonator, Ceramic, 0.4 %, Surface Mount, 3 Pins, 30 Ohms, 0.5 %, AWSCR-CV
安富利制造商模型#:
AWSCR-12.00CV-T
RoHS 10 Exempt
Resonator, Ceramic, 0.4 %, Surface Mount, 3 Pins, 30 Ohms, 0.5 %, AWSCR-CV
技术参数
- Low resonant impedance
- Built-in load capacitors
- IR reflow capable
技术特性
查找类似的料号|
|
描述 | 值 |
|---|---|---|
|
|
产品范围 | AWSCR-CV Series |
|
|
Load Capacitance | 22 pF |
|
|
引脚数 | 3 |
|
|
Resonant Dimensions | 3.7mm x 3.1mm x 1mm mm |
|
|
Frequency Tolerance + / - | 0.5 % |
|
|
共振频率 | 12 MHz |
|
|
Frequency Stability + / - | 0.4 % |
|
|
Resonant Type | Ceramic |
|
|
Resonant Mounting | Surface Mount |
|
|
Resonant Case / Package | SMD |
|
|
Resonant Impedance | 30 Ohm |
|
|
最高工作温度 | 85 °C |
|
|
安装 | Surface Mount |
|
|
最低工作温度 | -25 °C |
ECCN / UNSPSC
| 描述 | 值 |
|---|---|
| ECCN: | EAR99 |
| 计划交货期 B: | 8541600025 |
| HTSN: | 8541600050 |
