制造商:
3M
D2510-6002-AR
线至板连接器, 2.54 mm, 10 触点, 针座, D2500 Series, 通孔安装, 2 排
安富利制造商模型#:
D2510-6002-AR
RoHS 10 Compliant

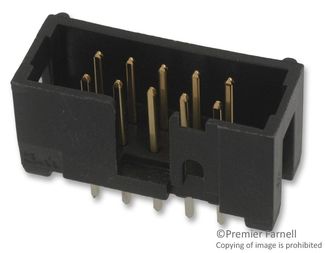

The D2510-6002-AR is a 10-way 2-row 0.100 x 0.100-inch straight Four Wall Wire-to-board Header with gold-plated brass contacts. This D2500 series low profile header comes with high temp glass filled polyester (PCT) insulator and space saving design. Center slot polarization designed to prevent misinsertions and reduce insertion time. High temperature insulator in through-hole version suitable for paste in hole reflow soldering. Optional retainer clip for locking sockets in place and increasing connection reliability in vibration prone environments.
技术参数
- Black color
- High temperature insulator suitable for no lead soldering operations
- UL94V-0 Flammability rating
- 1 x 10�Ω at 500VDC Insulation resistance
技术特性
查找类似的料号|
|
描述 | 值 |
|---|---|---|
|
|
极性 | Header |
|
|
铅完成 | Matte Tin |
|
|
Base/Housing Material | PCT (Polychlorinated Terphenyl) |
|
|
类型 | Shrouded Header |
|
|
Body Orientation | Straight |
|
|
Pitch | 2.5400 mm |
|
|
终止方法 | Solder |
|
|
产品长度 | 20.02 mm |
|
|
触点材料 | Brass |
|
|
触点电镀 | Gold |
|
|
产品尺寸 | 20.02 x 8.59 x 9.91 mm |
|
|
Housing Color | Black |
|
|
最高加工温度 | 260 |
|
|
工作温度 | -55 to 105 °C |
|
|
安装 | Through Hole |
|
|
Number of Rows | 2 |
|
|
MSL 级别 | MSL 1 - Unlimited |
|
|
最大额定电压 | 1000 V |
ECCN / UNSPSC
| 描述 | 值 |
|---|---|
| ECCN: | EAR99 |
| 计划交货期 B: | 8536695050 |
| HTSN: | 8536694051 |
