Manufacturer:
Renesas Electronics
Product Category:
Kits & Tools,
Evaluation & Development Kits
DA16600MOD-DEVKT
Development Kit, DA16200, 2.4GHz Wireless Communication
Avnet Manufacturer Part #:
DA16600MOD-DEVKT
RoHS 6 Compliant

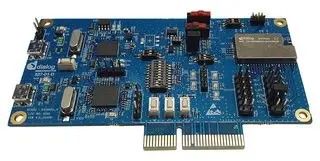

DA16600 evaluation kit includes a host board for the DA16600 Wi-Fi Module. DA16600 is a ultra low power Wi-Fi ® + BLE Modules for battery powered IoT applications. The fully integrated module consists of DA16200 Wi-Fi SoC, DA14531 BLE SoC, 4MB flash memory, 40MHz crystal for Wi-Fi, 32KHz RTC crystal for Wi-Fi, 32MHz crystal for BLE, Chip antenna and SPDT antenna switch.
Key Features
- Single power supply voltage (3.3V)
- SoC runs full OS & TCP/IP stack on module
- Simple setup & provisioning
- Comprehensive networking software stack
- Leading security
- Enables field deployed device firmware updates
- UART, SPI, ADC, I2 C, PWM, I2 S, GPIOs, JTAG and SWD I/Os
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| ECCN: | 5A992.c |
| SCHEDULE B: | 8542310000 |
| HTSN: | 8542310001 |
Documents
Please log in to view more information.
Documents
| Title | Download | Type | Date Published |
|---|---|---|---|
| Renesas_Datasheet_DA16600MODDevkt | Product-Guides | 20241001 | |
| Get Started Using /IOTCONNECT™ | Avnet | News | 20250408 |
