Empowering Sensing & Edge Computing: Transcend’s MTE712A SSD Solution

As the wearable market grows to 610M units by 2029, Transcend’s MTE712A PCIe Gen4 SSD provides the critical speed, endurance, and TCG Opal encryption needed for secure sensing and real-time edge computing in consumer electronics.

With the explosive growth of Bluetooth location services—projected to reach 563 million units by 2028—and the surging wearable market, the demand for sophisticated sensing technology is at an all-time high. These devices generate massive amounts of sensitive data that must be processed at the edge with zero latency.

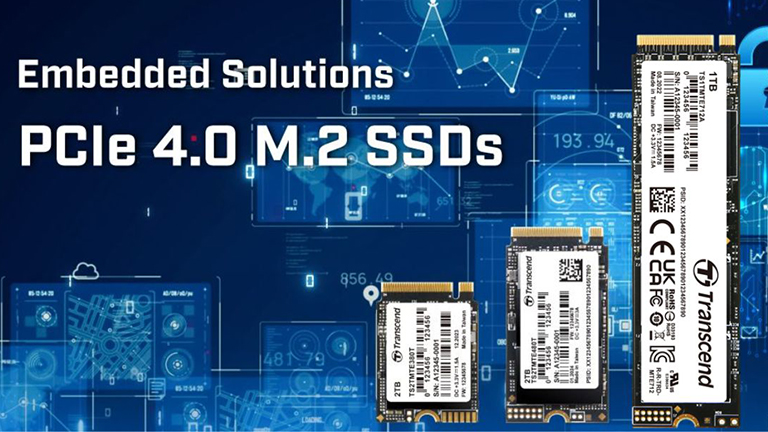

Transcend’s MTE712A M.2 SSD is engineered to meet this challenge. Built on 112-layer 3D NAND and the PCIe Gen4 x4 interface, it delivers the high-speed throughput required for complex data sensing. Beyond performance, the MTE712A is a Self-Encrypting Drive (SED) that protects user privacy through hardware-based AES 256-bit encryption. Its rugged design, featuring Corner Bond and Anti-Sulfur technology, ensures that whether in a smartwatch gateway or a mobile healthcare station, your data remains secure and accessible in any environment.

Features

• Next-Gen Interface: PCIe Gen4 x4 interface compliant with NVMe 1.4 specifications.
• Superior Endurance: Rated at 3K P/E cycles for long-term reliability in write-intensive sensing tasks.
• Advanced Security: Hardware-based AES 256-bit encryption and TCG Opal 2.0 compliance.
• Rugged Reliability: Corner Bond technology and anti-sulfur resistors for harsh operating conditions.
• Optimized Performance: Built-in DDR4 DRAM cache for faster random access speeds.
• Thermal Management: Dynamic Thermal Throttling ensures stable operation during heavy edge workloads.

Applications

• Edge Computing Gateways: Fast data processing for large-scale Bluetooth beacon networks.
• High-End Wearable Ecosystems: Storage for AR/VR headsets and mobile sensing hubs.
• Smart Retail & Tracking: Real-time data logging for consumer behavior and location-based sensing.
• Health Monitoring Systems: Secure storage for sensitive biometric data in portable medical devices.

Key components

• 112-layer 3D NAND Flash
• NVMe PCIe Gen4 x4 Interface
• Embedded DDR4 DRAM Cache
• 30µ" Gold Finger PCB
• Full drive encryption with Advanced Encryption Standard (AES)
• Compliant with NVM Express specification 1.4
• SLC caching technology
• Dynamic thermal throttling
• Built-in LDPC ECC (Error Correction Code) functionality
• Advanced Global Wear-Leveling and Block management for reliability
• Advanced Garbage Collection
• Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices
• TRIM command for better performance
• Compliant with TCG Opal specifications and IEEE 1667 standards
• Compliant with RoHS 2.0 standards
• Compliant with NVM Express specification 1.4
• Compliant with PCI Express specification 4.0
• Space-saving M.2 form factor (80mm) – ideal for mobile computing devices
• Endurance: 3K P/E cycles (Program/Erase cycles)
• Key components fortified by default with Corner Bond technology
• Anti-sulfur technology implemented to prevent sulfurization in the environment
• Power Shield (PS) to ensure data transfer integrity and minimize data corruption in the drive during an abnormal power outage
• Extended Temp. (-20°C ~ 75°C) and Wide Temp. (-40°C ~ 85°C) options available
• Supports Transcend Scope Pro software

Benefits

• Data Integrity: Power Shield (PS) minimizes data corruption during sudden power outages.
• Enhanced Security: Self-Encrypting Drive (SED) functionality protects personal consumer data from unauthorized access.
• Industrial-Grade Longevity: Extended temperature support (-20°C to 75°C) suitable for diverse consumer environments.
• Maximized Efficiency: High IOPS - Input/Output Operations Per Second (up to 350K) reduces latency in real-time sensing analysis.

Block Diagram
