MICRO BLADE & BEAM STRIPS
Samtec's ultra micro interconnects feature fine pitches, slim body designs and extremely low profiles for incredible design flexibility with high-speed performance up to 56 Gbps PAM4. Self-mating Razor Beam™ interconnects reduce inventory costs, and can be interchanged for a variety of stack heights from 5 to 12 mm with optional EMI shielding. Razor Beam™ contacts feature undercut retention notches with an audible click when mated; this increases mating/unmating forces by 4 to 6 times compared to typical micro pitch connectors.
Micro Blade & Beam systems feature incredibly fine pitches and ultra low stack heights down to 2 mm. Jack screw standoffs are available for unmating assistance and protection from component damage.

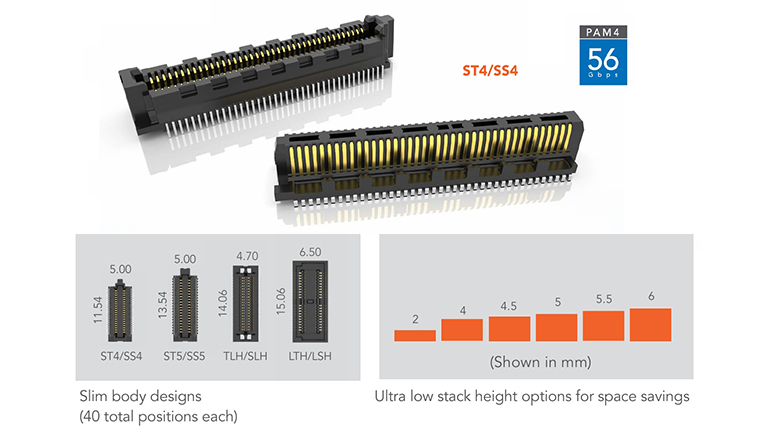

These Micro Blade & Beam 0.40 mm & 0.50 mm fine pitch connectors feature an ultra slim, ultra low profile for increased board space savings.
Features
- Ultra-fine 0.40 mm and 0.50 mm pitch
- Low profile stack heights from 2 to 6 mm
- Slim body designs for increased PCB space savings
- 20 - 160 positions
- Performance to 16 Gbps (LXH), 28 Gbps (SX4, XLH) and 56 Gbps PAM4 (SX5)
- SureWare™ precision board stacking standoffs available (SO)
Application
- Energy
- Automotive & Transportation
- COMPUTER
- Mecical
- Datacom
- AI
- Industrial/IIoT
