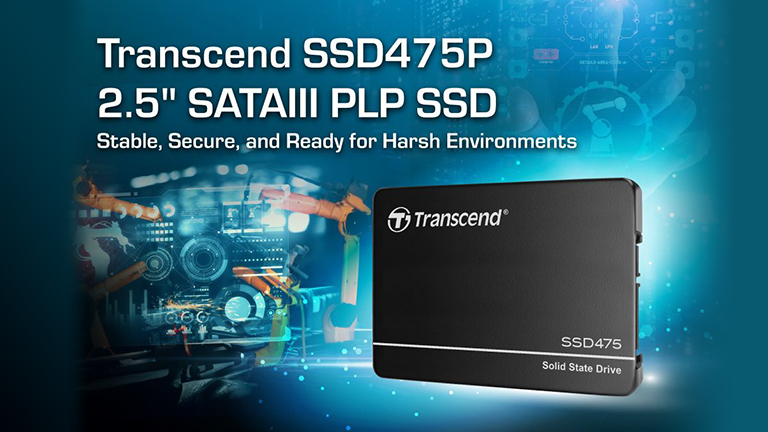

Empowering Polyfunctional Robots with Transcend SSD475P
High-endurance SSD with PLP for machine vision and industrial robotics.
Transcend’s SSD475P offers robust performance, power loss protection, and wide-temp reliability, making it the ideal storage solution for industrial robots and machine vision applications.
Polyfunctional robots and machine vision systems are transforming industrial automation with their ability to perform complex tasks across multiple functions. These systems rely heavily on fast, stable, and durable storage to handle real-time data processing, image recognition, and AI-driven decision-making.
Transcend’s SSD475P is engineered to meet these demands with a SATA III 6Gb/s interface, 112-layer 3D NAND flash, and up to 8TB storage capacity. Its built-in DRAM cache enhances random read/write performance and endurance, while the Polymer Hybrid EC capacitor provides Power Loss Protection (PLP), safeguarding critical data during unexpected outages. Tested for extreme operating temperatures of -40°C to 85°C, the SSD475P ensures consistent reliability in harsh industrial environments.
With an advanced suite of firmware technologies, including dynamic thermal throttling, wear leveling, LDPC ECC, and AES encryption (optional), the SSD475P delivers both performance and security, making it a trusted choice for mission-critical robotics and vision-based automation.
Features
- Up to 8TB capacity with SATA III 6Gb/s interface
- Built-in DRAM cache for faster performance and endurance
- 112-layer 3D NAND flash with 3K P/E cycles
- Power Loss Protection (PLP) with Polymer Hybrid EC capacitor
- Wide-temp endurance: -40°C to 85°C
- Exceptional reliability with Uncorrectable Bit Error Rate (UBER) of 10⁻¹⁷
- AES full-disk encryption and TCG Opal support (optional)
Applications
- Machine vision systems for industrial inspection
- Autonomous and collaborative robots (cobots)
- Smart manufacturing automation
- Industrial control and monitoring systems
- AI-powered robotics for multi-functional tasks
Key components
- 112-layer 3D NAND flash
- Endurance: 3K P/E cycles (Program/Erase cycles)
- DRAM cache embedded
- SATA III 6Gb/s interface
- 8TB maximum capacity
- Built-in thermal sensor & dynamic thermal throttling
- LDPC Error Correction Code (ECC) for advanced error correction
- AES encryption & TCG Opal support (optional)
- Power Loss Protection (PLP) with Polymer Hybrid EC capacitor
- Wide-temperature tolerance (-40°C to 85°C)
- Wear Leveling & Garbage Collection
- Bad Block management
- TRIM and NCQ commands for optimized performance
- 30µ” PCB Gold Finger
- S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices
- Power-saving DevSleep (Device Sleep) mode (optional)
- Compliant with RoHS 2.0 standards
Benefits
- Data integrity protection: PLP safeguards data during sudden power outages.
- High endurance: 3K P/E cycles and DRAM cache extend drive lifespan.
- Industrial-grade reliability: Stable performance under extreme temperatures and heavy workloads.
- Optimized efficiency: Supports high-speed image and sensor data processing for machine vision.
- Security ready: Optional AES encryption ensures sensitive industrial data remains protected.
