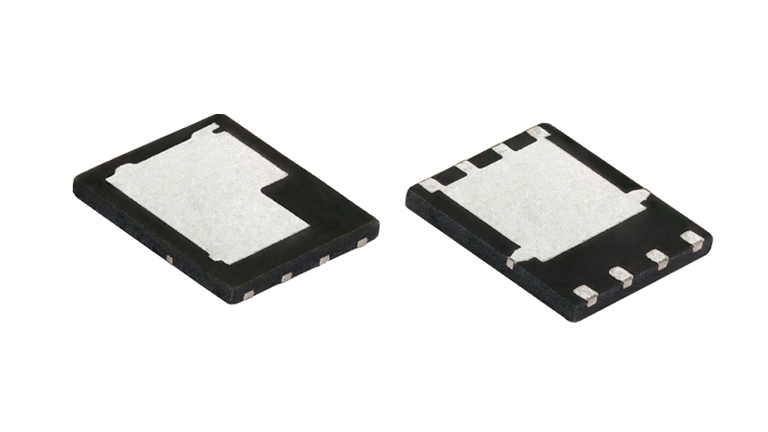

PowerPAK® SO-8DC package

Vishay TrenchFET® Top-Side Double Cooling MOSFETs

Vishay TrenchFET®  Top-Side Double Cooling MOSFETs feature top-side cooling and offer an additional venue for thermal transfer. These MOSFETs come in the PowerPAK® SO-8DC package. The TrenchFET® double cooling MOSFETs offer variants with different drain-source breakdown voltages of 25V, 30V, 40V, 60V, 80V, 100V, 150V, and 200V. These N-channel MOSFETs operate at a temperature range from -55°C to 175°C. The TrenchFET MOSFETs can be utilized for product-specific applications including synchronous rectification, DC/DC conversion, power supplies, battery management, and others.

Vishay TrenchFET® Top-Side Double Cooling MOSFETs



Features

  • Low profile: 6 mm x 5 mm x 0.61 mm
  • Excellent rdS(on)*Qg and rdS(on)*Qoss FoMs for switchmode power supply designs
  • High performance products that improve efficiency of power conversion and increase power density
  • SidrXXXeP: 175 °c junction temperature upgrade



Application

  • Hybrid Switched-capacitor Converter
  • Synchronous rectification
  • Primary side switch
  • DC/DC converters
  • OR-ing and hot swap switch
  • Power supplies
  • Motor drive control
  • Battery management



Key Components

SiDR680ADP \ SiDR626LDP \ SiDR510EP \ SiDR5802EP \ SiDR626EP \ SiDR402EP \ SiDR500EP



Benefits

PowerPAK® SO-8DC 封装具备双面散热设计,绝佳的FOM晶片性能并有工业级175℃选项



Related Products

PowerPAK® 10 x 12 \ PowerPAK® 8 x 8 \ PowerPAK® 1212-F
