Bourns 磁性解决方案用于电动自行车 ADAS 的信号完整性
As e-bikes become increasingly popular, the integration of Advanced Driver Assistance Systems (ADAS) is enhancing their safety and functionality. ADAS features such as collision avoidance, lane-keeping assistance, and adaptive cruise control rely on high-quality magnetic components to ensure efficient power management and signal integrity. The connection of Radar, sensing camera or even Lidar to SoC chipset also required reliable communication ports for CAN, CANFD, 100base-T1 or 1000baseT1 ports. Bourns offers a range of common mode Chokes(SRF3225A series) that are crucial for the effective operation of ADAS in e-bikes.
Bourns offers a comprehensive range of magnetic components that provide the necessary power conversion, signal filtering, and EMI suppression required for the accurate and reliable functioning of ADAS features. As e-bikes continue to evolve, by leveraging Bourns’ expertise in magnetic components, manufacturers can ensure that their e-bikes are equipped with the latest ADAS technologies, providing riders with a safer and more enjoyable riding experience.
特點
- 緊湊的外形
- 低輻射的遮罩結構
- 雙絲口結構
- SRF3225TAC-xxxY 符合 CAN/CAN FD 介面的 IEC 62228-3 I 類和 II 類要求
- SR3225TABM-201Y 符合Open Alliance IEEE 1000base T1 要求
- SRF322TABG101Y符合Open Alliance IEEE 1000base T1 要求
- 提供 CMC 的 S parameters
- 滿足AECQ200要求
應用
電動自行車或其他工業和汽車應用的 CAN\100base T1\1000 base T1 介面中的雜訊抑制
關鍵元件
- SRF3225TAC-xxxY 用於 CAN 介面
- SR3225TABM-201Y 用於 IEEE 1000base T1 介面
- SRF322TABG101Y用於 IEEE 1000base T1 介面
優勢
- 1） 電動自行車的 CAN\100base T1\1000 base T1 介面具有出色的雜訊抑制能力
- 2） 滿足 IEC 和 Open Alliances 標準中的 S 參數要求

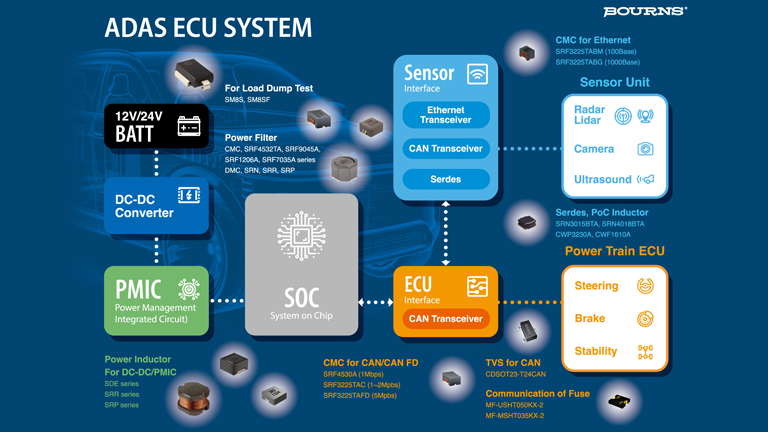

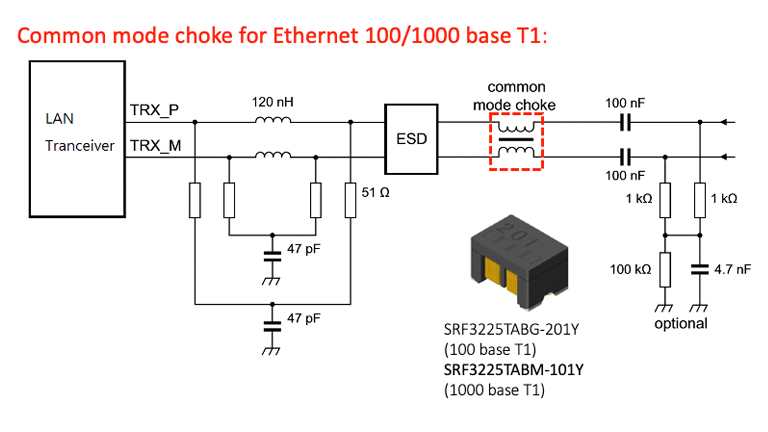

框圖
