Bourns 的磁性解决方案用于电动自行车 ADAS 的信号完整性

As e-bikes become increasingly popular, the integration of Advanced Driver Assistance Systems (ADAS) is enhancing their safety and functionality. ADAS features such as collision avoidance, lane-keeping assistance, and adaptive cruise control rely on high-quality magnetic components to ensure efficient power management and signal integrity. The connection of Radar, sensing camera or even Lidar to SoC chipset also required reliable communication ports for CAN, CANFD, 100base-T1 or 1000baseT1 ports. Bourns offers a range of common mode Chokes(SRF3225A series)  that are crucial for the effective operation of ADAS in e-bikes.

Bourns offers a comprehensive range of magnetic components that provide the necessary power conversion, signal filtering, and EMI suppression required for the accurate and reliable functioning of ADAS features. As e-bikes continue to evolve, by leveraging Bourns’ expertise in magnetic components, manufacturers can ensure that their e-bikes are equipped with the latest ADAS technologies, providing riders with a safer and more enjoyable riding experience.


特点

• 紧凑的外形
• 低辐射的屏蔽结构
• 双丝口结构
• SRF3225TAC-xxxY 符合 CAN/CAN FD 接口的 IEC 62228-3 I 类和 II 类要求
• SR3225TABM-201Y 符合Open Alliance IEEE 1000base T1 要求
• SRF322TABG101Y符合Open Alliance IEEE 1000base T1 要求
• 提供 CMC 的 S parameters
• 满足AECQ200要求

应用

电动自行车或其他工业和汽车应用的 CAN\100base T1\1000 base T1 接口中的噪声抑制

关键元件

• SRF3225TAC-xxxY 用于 CAN 接口
• SR3225TABM-201Y 用于 IEEE 1000base T1 接口
• SRF322TABG101Y用于 IEEE 1000base T1 接口

优势

• 1） 电动自行车的 CAN\100base T1\1000 base T1 接口具有出色的噪声抑制能力
• 2） 满足 IEC 和 Open Alliances 标准中的 S 参数要求

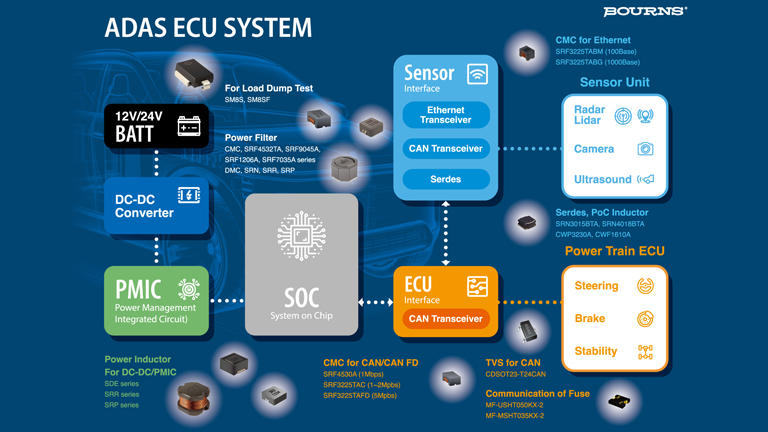

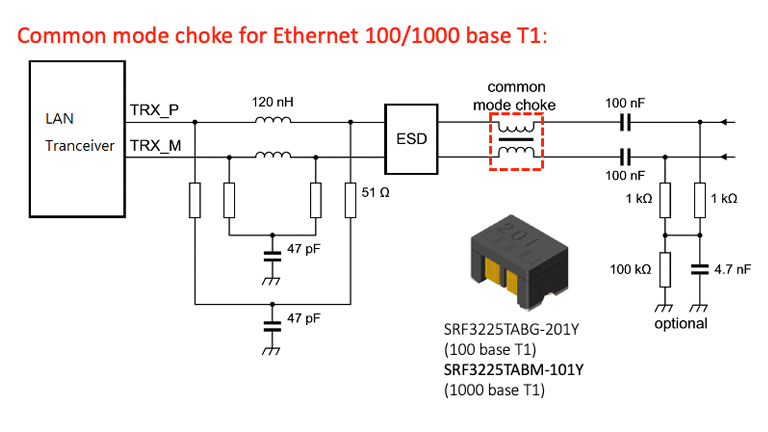

框图
