IoT Sensor Solution Proposal by Toshiba

Low power consumption and miniaturization are important in designing IoT sensor. Toshiba provides information on a wide range of semiconductor products suitable for power supply units, sensor signal input units, control unit, display unit, etc., along with circuit configuration examples.

Toshiba Electronic Devices & Storage Corporation provides comprehensive device solutions to customers developing new products by applying its thorough understanding of the systems acquired through the analysis of basic product designs.

Features

Proposals from Toshiba

• Suitable for high efficiency power
  • supply switching
  • MOSFET
• High current surge resistance and
  • low switching loss
  • SiC Schottky barrier diode
• Suitable for high speed gate driving
  • of MOSFET
  • Bipolar transistor (Gate driver)
• Suitable for power supply feedback
  • circuit
  • IC output photocoupler

Applications

• Consumer equipment (home appliances, etc.)
• Industrial equipment (OA equipment, etc.)

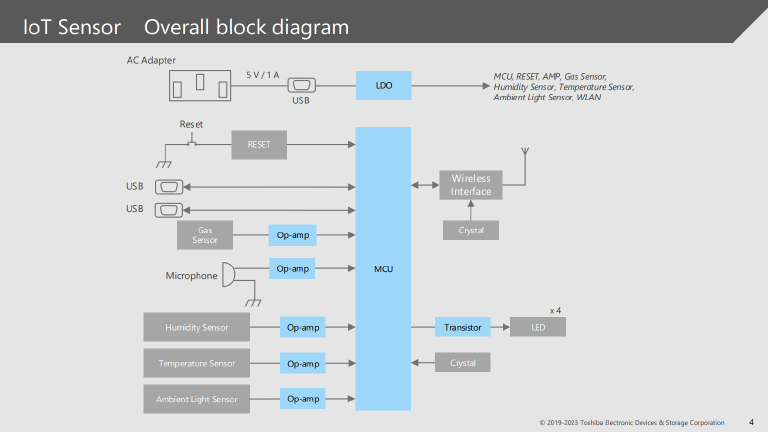

Block diagram

Description of Above Graphic

Application Circuit Examples
