794821-1

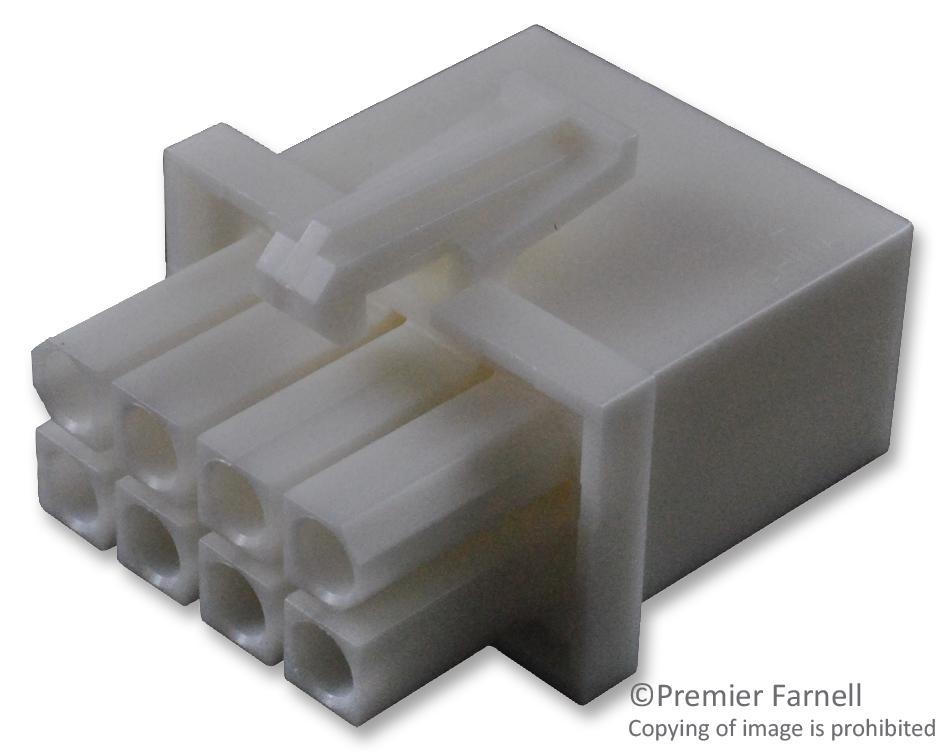

Connector Housing, Mini Universal MATE-N-LOK, Plug, 8 Ways, 4.14 mm
Click image to enlarge
Manufacturer:TE Connectivity
Avnet Manufacturer Part #: 794821-1
Secondary Manufacturer Part#: 794821-1
-
RoHS 10 Compliant -
Tariff Charges
The 794821-1 is a 8-way 2-row Plug Housing for use with Mini-Universal MATE-N-LOK connectors. Made of natural nylon. Used in conjunction with interface seal, wire seals and cavity plug seals.
- UL94V-0 Flammability rating
- 600VAC/VDC Voltage rating
- -40 to +90°C Operating temperature range
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Nylon | ||
| Straight | ||
| Plug | ||
| White | ||
| 11.2 A | ||
| Cable Mount | ||
| 8 | ||
| 2 | ||
| -20 to 105 °C | ||
| 4.1400 mm | ||
| 24.97 mm | ||
| 20.68 x 24.97 x 15.21 mm mm | ||
| 15.21 mm | ||
| 20.68 mm | ||
| 794821 | ||
| Sealed | ||
| 600 Vdc|Vac | ||
| 30 to 16 AWG |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | EAR99 |
| HTSN: | PARTS... |
| Schedule B: | PARTS... |
Ships
in 1 bus. day
