1-1337452-0
RF / Coaxial Connector, BNC Coaxial, Straight Bulkhead Jack, Solder, 50 ohm, Brass
Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Connectors, RF/Coaxial, RF/Coax Connectors
Avnet Manufacturer Part #: 1-1337452-0
-
RoHS 10 Compliant -
Tariff Charges

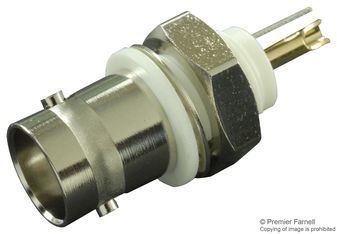

The 1-1337452-0 is a straight BNC Coaxial Bulkhead Jack with gold-plated brass contact. It features solder termination, nickel-plated body, ABS dielectric and 4GHz maximum frequency.
- 50 Ohm BNC Insulated Bulkhead Socket
- Body Plating Material: Nickel
- Center Contact Plating Material: Gold
- Designed and Manufactured to meet MIL-C-39012 Requirements
- The range offers connectors to suit from DC-11 GHz Operation
- Mounting Style: Bulkhead
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| null | ||
| Straight Bulkhead Jack | ||
| Panel Mount | ||
| null | ||
| null | ||
| 4 GHz | ||
| null | ||
| 4 GHz | ||
| null | ||
| null |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | EAR99 |
| HTSN: | 85366900 |
| Schedule B: | 85366900 |
Factory Lead Time:
