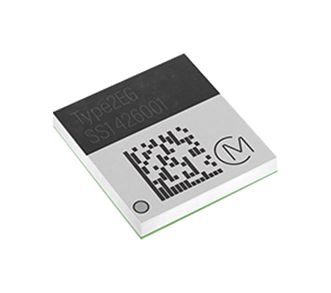

LBCA1HN2EG-917
Bluetooth Module, BLE 5.2, 1 Mbps, -96 dBm, 1.71 to 3.46 V, -40 °C to 85 °C
Click image to enlarge
Manufacturer:Murata
Product Category:
ICs, RF ICs, Wireless SoC
Avnet Manufacturer Part #: LBCA1HN2EG-917
-
RoHS 10 Compliant -
Tariff Charges
LBCA1HN2EG-917 is a Type 2EG, ultra-low power, ultra-small, and secure Bluetooth Low Energy 5.2 wireless module for connected IoT edge devices in industrial and medical applications.
- Onsemi RSL15 Wireless SoC, Bluetooth® 5.2, 48MHz Arm® Cortex® M33 MCU core
- UART, QSPI, SPI, GPIO, ADC, DAC, PWM, 12C interfaces, Arm® CryptoCell 312
- Regulatory certification: FCC/IC, ETSI, MIC (Japan)
- Powerful MCU core for user applications, ultra-low power consumption
- Integrated IoT cybersecurity platform, rich peripheral interface, ultra-small size
- Dimension is 7.0 x 7.4 x 1.0mm, SMT mounting type
- Supply voltage range from 1.71V to 3.46V, interface voltage range from 1.2V to 3.6V
- Operating temperature range from -40°C to 85°C
- Maximum transmit power: 6dBm, receive sensitivity: -96dBm at 1Mbps
- Ultra-low power, TX 4.3mA at 0dBm, RX 2.7mA at 1Mbps, sleep mode 36nA at 3V VBAT
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Industrial, Medical | ||
| null | ||
| null | ||
| null | ||
| 2.4 GHz | ||
| null | ||
| null | ||
| null | ||
| null | ||
| Bluetooth 5.2 SoC | ||
| null |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | 5A991.g |
| HTSN: | 85176290 |
| Schedule B: | 85176290 |
