ON Semiconductor - AR0135AT & AR0135CS

1/3‐inch 1.2 Mp CMOS digital image sensor with global shutte

This product is a 1/3-inch 1.2 Mp CMOS digital image sensor with an active-pixel array of 1280 (H) × 960 (V). It is designed for low light performance and features a global shutter for accurate capture of moving scenes and synchronization with pulsed light sources.

It includes sophisticated camera functions such as auto exposure control, windowing, scaling, row skip mode, and both video and single frame modes. It is programmable through a simple two-wire serial interface. It produces extraordinarily clear, sharp images, and its ability to capture both continuous video and single frames makes it the perfect choice for a wide range of applications, including automotive in−cabin applications (AR0135AT), scanning and machine vision (AR0135CS).

Features

  • ON Semiconductor’s next generation global shutter technology
  • Superior low-light performance
  • HD video (720p60)
  • Video/Single frame mode
  • Flexible row-skip modes
  • On-chip ae and statistics engine
  • Parallel and serial output
  • Support for external led or flash
  • Auto black level calibration
  • Context switching


Benefits

  • Allow the camera to “freeze” fast moving scene data
  • Ensure effective synchronization with pulsed light sources
  • Allow sensor to produce clear, low-noise images, in both low-light and bright scenes, and in high temperature environments.
  • Enable the required eye tracking and gesture detection functionality in next generation automotive in-cabin systems, 3D scanner & gesture recognition devices.

Target applications

Applications for AR0135AT:

  • Automotive In-Cabin / Driver Monitoring System
  • 720p60 Video Applications.

Applications for AR0135CS:

  • Barcode scanner
  • 3D scanning
  • Positional tracking
  • Iris Scanning
  • Augmented Reality
  • Virtual Reality
  • Biometrics
  • Machine vision

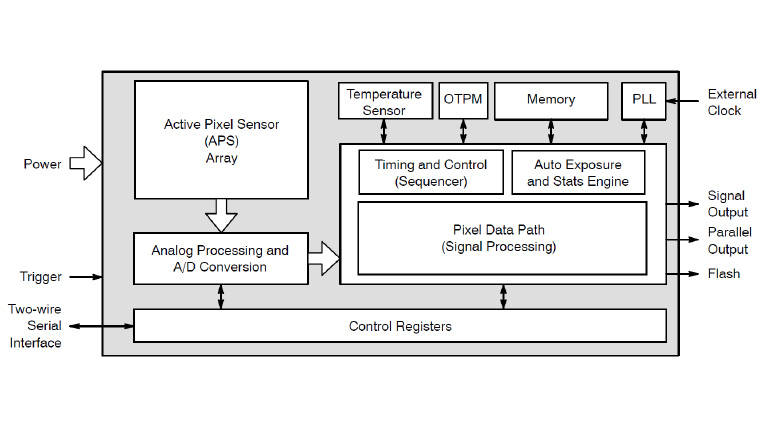

Block diagram

ON Semiconductor  AR0135AT & AR0135CS
