製造商:
Vishay
WYO102MCMBF0KR
Ceramic Suppression Capacitor, Disc, 1000 pF, ± 20%, X1 / Y2, 440 V, 250 V
替代料號:
WYO102MCMBF0KR
RoHS 10 Compliant

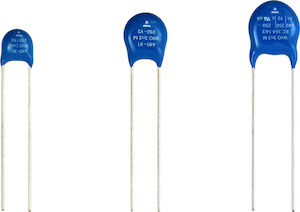

The WYO series AC line rated Single-layer Capacitor consists of ceramic disc both sides of which are silver plating. Connection leads are made of tinned copper clad steel having a diameter of 0.6mm. The capacitors may be supplied with vertical (inline) kinked leads having a lead spacing of 5 or 7.5mm. It is suitable for X1, Y1 according to IEC 60384-14.3 and line by-pass applications.
技術參數
- High reliability
- Blue coloured flame-retardant epoxy resin coating
- UL94V-0 Flammability rating
技術屬性
查找類似的料號|
|
描述 | 值 |
|---|---|---|
|
|
額定電壓 X | 440 Vac |
|
|
電容器安裝 | Through Hole |
|
|
引線間距 | 5 mm |
|
|
最高工作溫度 | 125 °C |
|
|
額定電壓 Y | 250 Vac |
|
|
電容 | 1000 pF |
|
|
電容容差 | 20% |
|
|
最低工作溫度 | -40 °C |
|
|
抑制類 | X1 / Y2 |
ECCN/UNSPSC
| 描述 | 值 |
|---|---|
| ECCN: | EAR99 |
| 計劃交貨期 B: | PARTS... |
| HTSN: | PARTS... |
