製造商:
Vishay

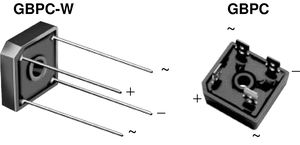

GBPC3510W-E4/51
Bridge Rectifier, Single Phase, 1 kV, 35 A, Module, 4 Pins, 1.1 V
替代料號:
GBPC3510W-E4/51
RoHS 10 Exempt
The GBPC3510W-E4/51 is a 4-pin single-phase glass passivated Bridge Rectifier Diode with high surge current capability. It is general purpose use in AC/DC bridge full wave rectification for home appliances, office equipment and telecommunication applications.
技術參數
- UL94V-0 Flammability rating
- 0.3μA Typical IR
- Silver plated on wire leads solderable per J-STD-002 and JESD22-B102 terminals
- Low thermal resistance
- Solder dip 275°C maximum 10s, per JESD 22-B106
- UL recognition file number E54214
- 700V Maximum RMS voltage
- -55 to 150°C Operating junction temperature range
技術屬性
查找類似的料號|
|
描述 | 值 |
|---|---|---|
|
|
最高工作溫度 | 150 |
|
|
橋式整流器外殼樣式 | Module |
|
|
反向重複峰值電壓 | 1 |
|
|
正向平均電流 | 35 |
|
|
正向電壓最大值 | 1.1 |
|
|
橋式整流器安裝 | Through Hole |
|
|
相位數 | Single Phase |
|
|
引腳數 | 4 |
ECCN/UNSPSC
| 描述 | 值 |
|---|---|
| ECCN: | EAR99 |
| 計劃交貨期 B: | PARTS... |
| HTSN: | PARTS... |
