製造商:
Vishay
AZ23C16-E3-08

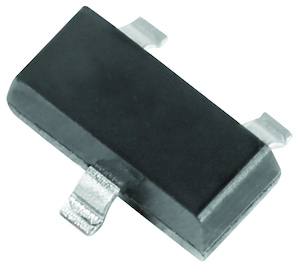

ZENER DIODE SOT23
替代料號:
AZ23C16-E3-08
RoHS 10 Compliant
ZENER DIODE SOT23
技術參數
- Dual silicon planar Zener diodes, common anode
- The Zener voltages are graded according to the international E24 standard. Standard Zener voltage tolerance is ± 5 %, indicated by the “C” in the ordering code. Replace “C” with “B” for 2 % tolerance.
- The parameters are valid for both diodes in one case. ΔVZ and ΔRzj of the two diodes in one case is Δ 5 %
- AEC-Q101 qualified
- ESD capability according to AEC-Q101: Human body model > 8 kV Machine model > 800 V
- Base P/N-E3 - RoHS-compliant, commercial grade
- Base P/N-HE3 - RoHS-compliant, AEC-Q101 qualified
技術屬性
查找類似的料號|
|
描述 | 值 |
|---|---|---|
|
|
齊納電壓標稱值 | 16 |
|
|
產品範圍 | AZ23 Series |
|
|
最高工作溫度 | 150 °C |
|
|
功率耗散 | 300 |
|
|
二極體外殼樣式 | SOT-23 |
|
|
二極體安装 | Surface Mount |
ECCN/UNSPSC
| 描述 | 值 |
|---|---|
| ECCN: | EAR99 |
| 計劃交貨期 B: | 8541100050 |
| HTSN: | 8541100050 |
