製造商:
TE Connectivity
產品分類:
Connectors,
Power Connectors
643232-1

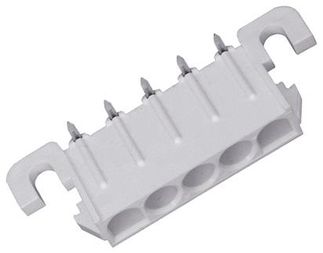

Conn Power SKT 5 POS 6.35mm Solder RA Thru-Hole 5 Terminal 1 Port
替代料號:
643232-1
RoHS 10 Compliant
Conn Power SKT 5 POS 6.35mm Solder RA Thru-Hole 5 Terminal 1 Port
技術參數
- PC Board Right-Angle Pin and Socket Headers
- 5 Circuit, In-Line
- Pins and sockets can be intermixed in the same housing
- Positive polarization
- Rear cavity identification
- Contacts completely enclosed in housings
- Positive locking housings
- Insulation capability to .200 [5.08] diameter
- Removable, crimp snap-in contacts
- Low contact mating force
- Contacts accept 30-10 AWG [.05-5.0 mm2] wire sizes
- Contacts available with pretin or gold plating
- Dual locking lances provide optimum contact stability
- Panel mount or free-hanging
- Mate with Universal MATE-N-LOK II Housings
- Available in UL 94V-O flame retardant material. Meets the material requirements of table 25.1 of U.L. Standard 1410 (television receivers and video products)
- Not for interrupting current
- Harness to PC Board capability using pin or socket headers
- Pin and socket headers are available in both vertical and right-angle style
- Solderability — headers meet MIL-STD 202 Method 208
- Contacts are on .250 [6.35] centerline spacing
技術屬性
查找類似的料號|
|
描述 | 值 |
|---|---|---|
|
|
產品長度 | 50.67 mm |
|
|
鉛完成 | Tin |
|
|
Body Orientation | Right Angle |
|
|
終止方法 | Solder |
|
|
觸點電鍍 | Pre-Tin |
|
|
產品尺寸 | 50.67 x 17.27 x 9.14 mm |
|
|
Pitch | 6.3500 mm |
|
|
Number of Ports | 1 |
|
|
Base/Housing Material | Nylon |
|
|
Number of Terminals | 5 |
|
|
最高加工溫度 | 265 |
|
|
安裝 | Through Hole |
|
|
類型 | Power |
|
|
觸點材料 | Phosphor Bronze |
|
|
Number of Contacts | 5 POS |
|
|
極性 | Receptacle |
ECCN/UNSPSC
| 描述 | 值 |
|---|---|
| ECCN: | EAR99 |
| 計劃交貨期 B: | PARTS... |
| HTSN: | PARTS... |
