製造商:
TE Connectivity

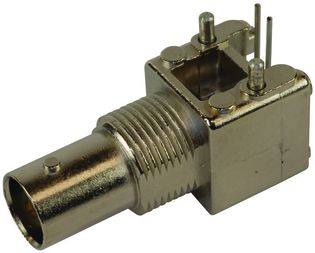

5227677-1
RF / Coaxial Connector, Mounting Post Style, BNC Coaxial, Right Angle Jack, Solder, 50 ohm
替代料號:
5227677-1
RoHS 10 Exempt
The 5227677-1 is a right angle BNC Jack with gold-plated phosphor bronze contact. It provides highly reliable, quick connect/disconnect coaxial connections. Exclusive single and O crimp terminations allow positive insulation grip and require no soldering, providing terminations at a very low overall applied cost. Furnished in field replaceable and twist-on styles. Accept a wide range of coaxial cables and are intermateable with industry standard connectors designed to MIL-C-39012 specifications.
技術參數
- Bayonet lock coupling for quick connect/disconnect
- Low VSWR
- Single crimp connectors offer one crimping operation for fast application
- Tarnish-resistant nickel finish
- Order 1-329632-2 lockwasher and 1-329631-2 jam nut separately
技術屬性
查找類似的料號|
|
描述 | 值 |
|---|---|---|
|
|
觸點材料 | Phosphor Bronze |
|
|
類型 | BNC |
|
|
觸點電鍍 | Gold |
|
|
阻抗 | 50 Ohm |
|
|
連接器安裝 | Through Hole |
|
|
連接器主體樣式 | Right Angle |
|
|
同軸終端 | Solder |
ECCN/UNSPSC
| 描述 | 值 |
|---|---|
| ECCN: | EAR99 |
| 計劃交貨期 B: | PARTS... |
| HTSN: | PARTS... |
