製造商:
TE Connectivity
2295018-2

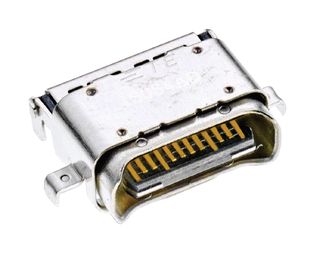

Conn USB Type C Receptacle 24 POS 0.5mm RA SMD Single Port T/R
替代料號:
2295018-2
RoHS 10 Compliant
Conn USB Type C Receptacle 24 POS 0.5mm RA SMD Single Port T/R
技術參數
- Distinctive design on the back of the receptacle shell for industry leading EMI performance
- Enhanced board retention features for added durability
- Splash proof options available. IPX4 rated to protect against water splashed from all directions
- Available in one of the smallest dual row surface mount (SMT) footprints, saving valuable board real-estate
- Provide one interconnect solution for data, power, and A/V
- Designed with a flippable and reversible mating interface
- Supports USB 2.0, USB 3.1 Gen 1 and USB 3.1 Gen 2
- Deliver power up to 100W at 20V
- Backward compatible to other USB connectors using converter cables or adaptors
技術屬性
查找類似的料號|
|
描述 | 值 |
|---|---|---|
|
|
工作溫度 | -30 to 85 °C |
|
|
最高加工溫度 | 260 °C |
|
|
觸點材料 | Copper Alloy |
|
|
類型 | USB Type C |
|
|
Number of Contacts | 24 |
|
|
USB | USB3.1 |
|
|
產品尺寸 | 11.94 x 7.9 x 3.6 mm |
|
|
系列名稱 | 2295018 |
|
|
Base/Housing Material | High Temperature Plastic|Stainless Steel |
|
|
Number of Ports | 1 |
|
|
產品長度 | 11.94 mm |
|
|
鉛完成 | Gold Flash Over Nickel |
|
|
觸點電鍍 | Gold Over Nickel |
|
|
Pitch | 0.5 mm |
|
|
安裝 | Surface Mount |
|
|
Body Orientation | Right Angle |
|
|
極性 | Receptacle |
ECCN/UNSPSC
| 描述 | 值 |
|---|---|
| ECCN: | EAR99 |
| 計劃交貨期 B: | PARTS... |
| HTSN: | PARTS... |
