製造商:
TE Connectivity
產品分類:
Connectors,
Power Connectors
1766500-1

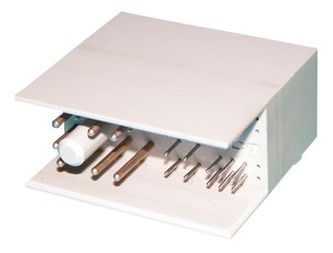

Conn Power M 8Power/22Signal POS Press Fit RA Thru-Hole 30 Terminal 1 Port
替代料號:
1766500-1
RoHS 10 Compliant
NCNR
This standard (PICMG 3.0) is one of the latest standards addressing future telecommunications needs. The AdvancedTCA Power Connector, designated for use in Zone 1 per PICMG 3.0, combines 8 High Conductivity Size 16 pin & socket contacts along with 22 Size 22 pin & socket contacts, plus guidance into a compact interface. Both connector halves feature proven compliant press-fit contacts for easy solder-less termination to printed circuit boards.
技術參數
- Designed to PICMG 3.0 Standard
- High conductivity copper alloy on Size 16 power contacts
- .76 micro-meters [30 microinch] gold over 1.27 micrometers [50 microinch] nickel plating at contact interface
- Gold-thickness controlled on inside of socket and outside of pin - at contact interface points
- RoHS compliant
- Stainless steel spring provides contact normal force - resists relaxation at elevated temperatures
- Eye of the needle compliant press-fit termination
- No special tools needed to seat connectors to PCB - standard Flat-Rock seating tools
- Additional PCB retention hardware not required
技術屬性
查找類似的料號|
|
描述 | 值 |
|---|---|---|
|
|
產品長度 | 46.1 mm |
|
|
安裝 | Through Hole |
|
|
觸點材料 | Copper Alloy |
|
|
鉛完成 | Tin |
|
|
極性 | Plug |
|
|
Number of Ports | 1 |
|
|
Number of Terminals | 30 |
|
|
Base/Housing Material | Thermoplastic |
|
|
產品尺寸 | 46.1 x 41.3 x 20.9 mm |
|
|
觸點電鍍 | Gold |
|
|
Body Orientation | Right Angle |
|
|
類型 | Power |
|
|
Number of Contacts | 30 POS |
|
|
終止方法 | Press Fit |
ECCN/UNSPSC
| 描述 | 值 |
|---|---|
| ECCN: | EAR99 |
| 計劃交貨期 B: | PARTS... |
| HTSN: | PARTS... |
