製造商:
TE Connectivity
1735801-1

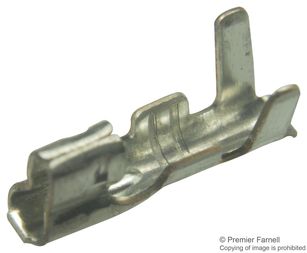

Contact, HPI Series, Socket, Crimp, 24 AWG, Tin Plated Contacts
替代料號:
1735801-1
RoHS 6 Compliant
The HPI series high performance Interconnect Connector System offers vertical and horizontal (right angle) connector mounting for versatility and the square-peg technology enables this product to mate with many other like products in the industry. The single-row and dual-row post headers are available in various colours to allow the customer to colour code their systems. The single-row connectors range from 2-16 positions, while the dual-row connectors are available in 10, 20, 30 and 40 positions.
技術參數
- High performance and high reliability
- Square-peg style enables interchangeability with competitors
- Header + COSI (crimp on snap in) connectors
- Cross-use test reports available
- Polarized
- Positive latching with audible click feedback when mating
- Different colours available for system colour coding
- 30 to 24AWG Wire size are available
技術屬性
查找類似的料號|
|
描述 | 值 |
|---|---|---|
|
|
極性 | Receptacle |
|
|
Shielded | No |
|
|
產品尺寸 | 5.8 x 2.1 x 2.8 mm |
|
|
觸點電鍍 | Tin |
|
|
Body Orientation | Straight |
|
|
金屬觸芯類型 | Signal |
|
|
連接器類型 | Connector Headers and PCB Receptacles |
|
|
終止方法 | Crimp |
|
|
產品長度 | 5.8 mm |
|
|
Wire Size | 30 to 24, 30 AWG |
|
|
觸點材料 | Phosphor Bronze |
|
|
安裝 | Cable Mount |
ECCN/UNSPSC
| 描述 | 值 |
|---|---|
| ECCN: | EAR99 |
| 計劃交貨期 B: | PARTS... |
| HTSN: | PARTS... |
