製造商:
Rohm
LM393FVM-TR
ROHLM393FVM-TR
替代料號:
LM393FVM-TR
RoHS 10 Compliant
The Universal Standard family LM393 / LM339 / LM2903 / LM2901 monolithic ICs integrate two / four independent comparators on a single chip and feature high gain, low power consumption, and an operating voltage range from 2[V] to 36[V] (single power supply).
技術參數
・Operating temperature range
Commercial Grade LM339/393 family : 0[℃] to + 70[℃]
Extended Industrial Grade LM2903/2901 family : -40[℃] to +125[℃]
・Open collector output stage
・Single / dual power supply compatible
・Low supply current
0.4[mA] typ.（LM2903/393 family）
1.1[mA] typ.（LM2901/339 family）
・Low supply current: 25[nA] typ.
・Low input offset current: 5[nA] typ.
・Common-mode input voltage range includes ground
・Differential input voltage is possible to apply the absolute maximum ratings±36[V].
・Low output saturation voltage
・TTL, MOS, CMOS compatible output
Commercial Grade LM339/393 family : 0[℃] to + 70[℃]
Extended Industrial Grade LM2903/2901 family : -40[℃] to +125[℃]
・Open collector output stage
・Single / dual power supply compatible
・Low supply current
0.4[mA] typ.（LM2903/393 family）
1.1[mA] typ.（LM2901/339 family）
・Low supply current: 25[nA] typ.
・Low input offset current: 5[nA] typ.
・Common-mode input voltage range includes ground
・Differential input voltage is possible to apply the absolute maximum ratings±36[V].
・Low output saturation voltage
・TTL, MOS, CMOS compatible output
技術屬性
查找類似的料號|
|
描述 | 值 |
|---|---|---|
|
|
輸入偏移電壓 | 7@5V |
|
|

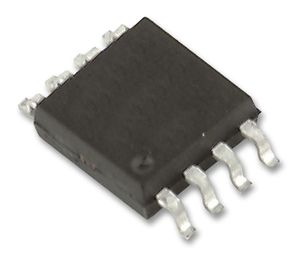

集成電路外殼/封裝 | MSOP |
|
|
集成電路貼裝 | Surface Mount |
|
|
比較器類型 | General Purpose |
|
|
最高工作溫度 | 85 °C |
|
|
電源類型 | Dual Supply, Single Supply |
|
|
最低工作溫度 | -40 °C |
|
|
輸入類型 | Open Collector |
|
|
比較器輸出類型 | Open Collector |
|
|
產品範圍 | LM393xxx Series |
|
|
軌至軌 | No |
|
|
電源電壓範圍 | 3V to 32V, ± 1.5V to ± 16V |
|
|
輸入偏置電流 | 0.25@5V |
ECCN/UNSPSC
| 描述 | 值 |
|---|---|
| ECCN: | EAR99 |
| 計劃交貨期 B: | 8542.39.00.00 |
| HTSN: | 8542.39.00.01 |
