製造商:
Pulse Electronics

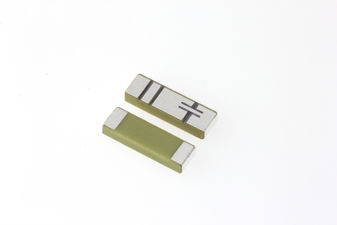

W3006
Chip Antenna, Dual Band, Linear, 2.4 GHz to 2.5 GHz, 5.15 GHz to 5.85 GHz, Surface Mount
替代料號:
W3006
RoHS 10 Compliant
W3006 is a 2.4-2.5/5.15-7.125GHz dual band ceramic chip antenna. Typical applications include IEEE 802.11a/b/g/n/x, WiFi-6E, 5GHz WLAN, 2.4GHz WLAN, 2.4GHz ISM band systems, 5GHz ISM band systems and ZigBee IEEE 802.15.4.
技術參數
- Peak gain of 2.2 / 5.2dBi
- Efficiency of 60 / 70%
- Fully SMD compatible
- Compact size of W x L x H (10 x 3.2 x 1.5mm)
技術屬性
查找類似的料號|
|
描述 | 值 |
|---|---|---|
|
|
阻抗 | 50 Ohm |
|
|
應用 | ISM|Wi-Fi|WLAN|ZigBee |
|
|
最高工作溫度 | 85 °C |
|
|
最低工作溫度 | -40 °C |
|
|
天線類型 | Chip |
|
|
天線安裝 | SMD |
|
|
頻率範圍 | 2.4GHz to 2.5GHz, 5.15GHz to 5.85GHz |
|
|
協議 | Bluetooth, WiFi 6E, WLAN, Zigbee |
|
|
增益 | 1.8dBi / 4.5dBi, 1.6dBi / 4.2dBi |
|
|
天線極化 | Linear |
|
|
天線帶 | Dual Band |
ECCN/UNSPSC
| 描述 | 值 |
|---|---|
| ECCN: | EAR99 |
| 計劃交貨期 B: | PARTS... |
| HTSN: | PARTS... |
