製造商:
onsemi
TL331SN4T3G
Comparator, Low Power, 1-Channels, 2 V to 36 V, 5 Pins, TSOP
替代料號:
TL331SN4T3G
RoHS 10 Compliant
TL331SN4T3G is a TL331 single channel, open collector, low power, wide supply range comparator. The input common-mode voltage range includes ground, even when operated from a single power supply voltage.
技術參數
- Low supply current is 0.5mA typical
- Input bias current is -25nA typ at Vs=+5.0V, At TA = +25°C
- Input offset voltage is 1mV typ at VCM = 0 to VCC-1.5V, Vo = 1.4V, RS = 0 ohm, VS = 5V to 30V
- Input offset current is 5nA typical at Vs=+5.0V, At TA = +25°C
- Differential input voltage range equal to the supply voltage
- TTL, DTL, ECL, CMOS compatible devices
- Low output saturation voltage: 150mV typ at IO = 4mA
- Output sink current is 16mA typ at VID = -1 V, VO = 1.5V, Vs=+5.0V, At TA = +25°C

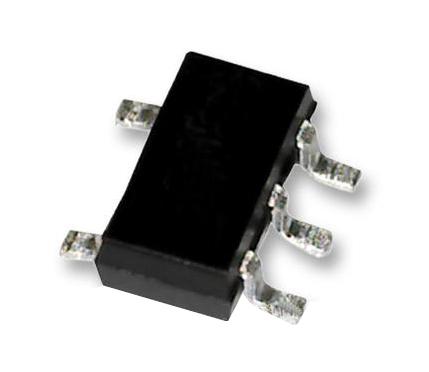

- TSOP-5 package
- Junction temperature is 150°C
技術屬性
查找類似的料號|
|
描述 | 值 |
|---|---|---|
|
|
比較器類型 | Low Power |
|
|
集成電路貼裝 | Surface Mount |
|
|
電源類型 | Dual Supply, Single Supply |
|
|
最高工作溫度 | 125 °C |
|
|
比較器輸出類型 | CMOS, DTL, ECL, Open Collector, TTL |
|
|
電源電壓範圍 | 2V to 36V, ± 1V to ± 18V |
|
|
最低工作溫度 | -40 °C |
|
|
集成電路外殼/封裝 | TSOP |
|
|
產品範圍 | TL331 Series |
ECCN/UNSPSC
| 描述 | 值 |
|---|---|
| ECCN: | EAR99 |
| 計劃交貨期 B: | 8542330000 |
| HTSN: | 8542330001 |
