製造商:
onsemi
NSR0140P2T5G
Small Signal Schottky Diode, Single, 40 V, 70 mA, 350 mV, 500 mA, 125 °C, SOD-923, 2 Pins
替代料號:
NSR0140P2T5G
RoHS 10 Compliant

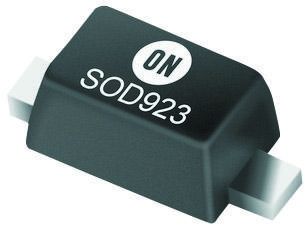

The Schottky diode is designed for high-speed switching applications, circuit protection and voltage clamping. Extremely low forward voltage reduces conduction loss. Miniature surface mount SOD923 package is excellent for hand-held and portable applications where space is limited.
技術參數
- Extremely Fast Switching Speed
- Extremely Low Forward Voltage 0.28 V (Typ) @ IF = 1.0 mA
- Low Reverse Current
- This is a Pb-Free Device
技術屬性
查找類似的料號|
|
描述 | 值 |
|---|---|---|
|
|
二極體外殼樣式 | Single |
|
|
二極體外殼樣式 | SOD-923 |
|
|
最高工作溫度 | 125 °C |
|
|
MSL 級別 | MSL 1 - Unlimited |
|
|
正向電壓最大值 | 350 mV |
|
|
二極體安装 | Surface Mount |
|
|
反向重複峰值電壓 | 40 V |
|
|
正向浪湧電流 | 500 mA |
|
|
引腳數 | 2 |
|
|
正向平均電流 | 70 mA |
ECCN/UNSPSC
| 描述 | 值 |
|---|---|
| ECCN: | EAR99 |
| 計劃交貨期 B: | PARTS... |
| HTSN: | PARTS... |
文件
您需要登錄才能查看內容
文檔
| 標題 | 下載 | 類別 | 發布日期 |
|---|---|---|---|
| Update Case Outline Drawing for SOD-923 Package sta..ng a note that L value should not be exceeding 0.30mm | Errata-Sheets | 20200901 |
