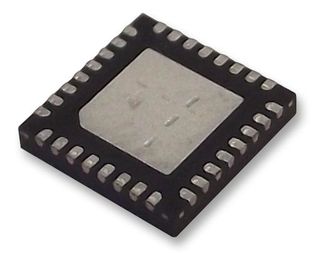

FUSB2805MLX
USB OTG Transceiver, USB 2.0, 2.7 V to 4.5 V, 32 Pins, WQFN
替代料號:
FUSB2805MLX
RoHS 10 Compliant
FUSB2805MLX is a USB2.0 high-speed OTG transceiver with ULPI interface. This UTMI+ low-pin interface (ULPI) transceiver is compliant with the universal serial bus specification Rev 2.0 (USB2.0), the ULPI Specification Rev. 1.1, and the On-The-Go (OTG) supplement to USB2.0. This is optimized to connect the USB2.0 host, peripheral, or OTG-controller to the USB connector via the ULPI link. Data can be transmitted and received at high speed (480Mbps), full speed (12Mbps), and low speed (1.5Mbps) through a 12bit (SDR) interface. Applications include set-top box video camera, MP3 player, cell phone, digital still camera, PDA, DVD recorder, scanner, printer.
技術參數
- Complies with USB 2.0, OTG Rev 1.3 supplement, and ULPI Rev 1.1 specifications
- Integrated termination resistors meet USB2.0 resistor ECN
- Integrated serializer and deserializer
- Insertion and removal of stuffed bits as appropriate
- USB clock and data recovery to ±150ppm
- Supports USB OTG Rev 1.3 host negotiation protocol and session request protocol
- 15kV ESD, IEC 61000 board level, air gap
- 1.4V maximum power-on reset trip voltage (referenced to VDDIO supply)
- 25mA typ operating supply current (full-speed data at 12MHz, 50pF load)
- 32 terminal MLP package, operating temperature range from -40 to +85°C
技術屬性
查找類似的料號|
|
描述 | 值 |
|---|---|---|
|
|
引腳數 | 32 |
|
|
集成電路外殼/封裝 | WQFN |
|
|
最低工作溫度 | -40 °C |
|
|
數據率 | 480 Mbps |
|
|
端口數 | 1 |
|
|
USB 芯片類型 | USB OTG Transceiver |
|
|
最大電源電壓 | 4.5 V |
|
|
最小電源電壓 | 2.7 V |
|
|
最高工作溫度 | 85 °C |
|
|
USB標準 | USB 2.0 |
ECCN/UNSPSC
| 描述 | 值 |
|---|---|
| ECCN: | EAR99 |
| 計劃交貨期 B: | 8542390000 |
| HTSN: | 8542390001 |
文件
您需要登錄才能查看內容
文檔
| 標題 | 下載 | 類別 | 發布日期 |
|---|---|---|---|
| FUSB2805MLX 32LD,MLP,QUAD,JEDEC MO-220, VARIATION WHHD-2, 5MM SQUARE | Part-Block-Diagram | 20101006 |
