製造商:
Molex

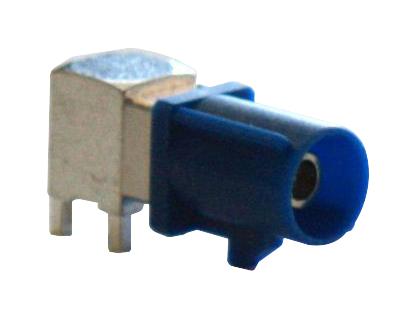

73403-5112
Conn SMB F 0Hz to 6GHz 50Ohm Solder RA Thru-Hole Gold
替代料號:
0734035112
RoHS 10 Exempt
FAKRA II SMB connectors, with 360° rotation and secondary locking latch deliver easy cable routing between antennas and multi-media units while meeting the USCAR requirements for on-board telematics systems.
The FAKRA II SMB product meets both American USCAR and German FAKRA automotive standards. The FAKRA II SMB connector system retains the high-performing, cost-effective RF attributes as the original FAKRA connector series.
The enhanced features meet the continued mechanical and environmental requirements of the automotive industry.
技術參數
- Connector rotates 360° inside the plastic shroud
- Secondary plug locking latch
- Numerous keying options and color codes
- Machined contact versions available
- Stamped-center contact versions available
- Cable-mount jacks and plugs
- Mates with original FAKRA PCB jacks and plugs
技術屬性
查找類似的料號|
|
描述 | 值 |
|---|---|---|
|
|
觸點電鍍 | Gold |
|
|
連接器安裝 | Through Hole |
|
|
觸點材料 | Brass|Phosphor Bronze |
|
|
阻抗 | 50 Ohm |
|
|
連接器主體樣式 | Right Angle |
|
|
同軸終端 | Solder |
ECCN/UNSPSC
| 描述 | 值 |
|---|---|
| ECCN: | EAR99 |
| 計劃交貨期 B: | 8536904000 |
| HTSN: | 8537109170 |
