製造商:
Amphenol
172117

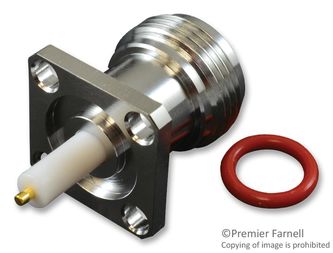

Conn Type N F 0Hz to 11GHz 50Ohm Solder ST Panel Mount Gold
替代料號:
172117
RoHS 10 Exempt
NCNR
N-Type connectors are designed to satisfy the need for a durable, weatherproof, medium-size RF connector with consistent performance through 11 GHz. Our N-Type connectors feature threaded coupling mechanisms and are fully interchangeable with N-Type connectors made to the MIL-C-39012 specification. These connectors are used in all systems where excellent RF and mechanical performance is critical.
技術參數
- Broad line of military, industrial and commercial grade products available
- Excellent RF performance from DC to 11 GHz
- Threaded coupling mechanism ideal for vibration resistance
技術屬性
查找類似的料號|
|
描述 | 值 |
|---|---|---|
|
|
觸點電鍍 | Gold |
|
|
產品尺寸 | 29.7 x 17.5 x 17.5 mm |
|
|
觸點材料 | Beryllium Copper|Phosphor Bronze |
|
|
同軸終端 | Solder |
|
|
連接器安裝 | Panel Mount |
|
|
連接器主體樣式 | Straight |
ECCN/UNSPSC
| 描述 | 值 |
|---|---|
| ECCN: | EAR99 |
| 計劃交貨期 B: | 8536694010 |
| HTSN: | 8536694010 |
