製造商:
Amphenol
142134
Conn SMB Plug 0 to 4GHz 50 Ohm Solder ST Through Hole Gold
替代料號:
142134
RoHS 10 Exempt
NCNR

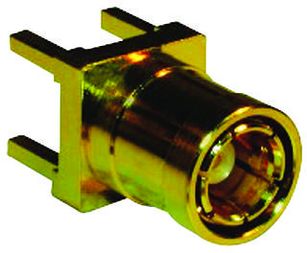

The SMB straight PCB plug connector features a snap-on coupling mechanism and is available in 50 Ohm configuration. SMB connectors conform to the requirements of MIL-C-39012, and the interface is in compliance with MIL-STD-348. SMB connectors offer broadband performance with low reflection DC to 4 GHz and utilize die cast components on non-critical areas to provide a low-cost solution.
技術參數
- Selective plating provides corrosion resistance finish as well as good solder-ability characteristics
- Gold plating option available
- SMB PCB slide-on plug and jack allows board-to-board mounting with a low insertion force making this is ideal for mating a high number of connectors on a pair of PCB’s.
技術屬性
查找類似的料號|
|
描述 | 值 |
|---|---|---|
|
|
觸點材料 | Brass |
|
|
連接器主體樣式 | Straight |
|
|
阻抗 | 50 Ohm |
|
|
最大頻率 | 4 GHz |
|
|
連接器安裝 | Through Hole |
|
|
同軸終端 | Solder |
|
|
觸點電鍍 | Gold |
ECCN/UNSPSC
| 描述 | 值 |
|---|---|
| ECCN: | EAR99 |
| 計劃交貨期 B: | 8536694010 |
| HTSN: | 8536694010 |
