制造商:
Vishay

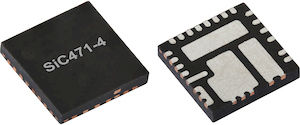

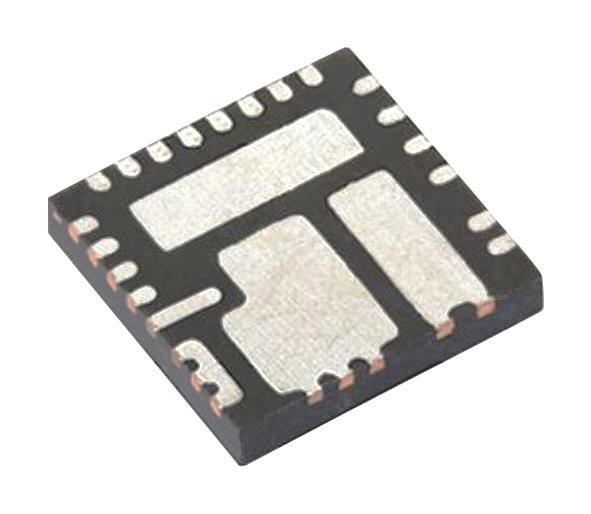

SIC471ED-T1-GE3
Conv DC to DC Single Step Down 4.5V to 55V 27-Pin PowerPAK MLP55
安富利制造商模型#:
SIC471ED-T1-GE3
RoHS 10 Compliant
The SiC47x is a family of wide input voltage, high efficiency synchronous buck regulators with integrated high side and low side power MOSFETs. Its power stage is capable of supplying high continuous current at up to 2 MHz switching frequency. This regulator produces an adjustable output voltage down to 0.8 V from 4.5 V to 55 V input rail to accommodate a variety of applications, including computing, consumer electronics, telecom, and industrial.
技术参数
- Single supply operation from 4.5V to 55V input voltage
- Adjustable output voltage down to 0.8V
- Scalable solution 12A
- Output voltage tracking and sequencing with pre-bias start up
- ±1 % output voltage accuracy at -40°C to +125°C
- 98% peak efficiency
- 4μA supply current at shutdown
- Adjustable switching frequency from 100kHz to 2MHz
- Adjustable soft start and adjustable current limit
- Output over voltage protection
- Output under voltage / short circuit protection with autoretry
- Power good flag and over temperature protection
技术特性
查找类似的料号|
|
描述 | 值 |
|---|---|---|
|
|
集成电路安装 | Surface Mount |
|
|
产品范围 | SiC47x Series |
|
|
拓扑结构 | Synchronous Buck (Step Down) |
|
|
输入电压最小值 | 4.5 V |
|
|
集成电路外壳/封装 | PowerPAK MLP 55 |
|
|
输出个数 | 1 |
|
|
输入类型 | Adjustable |
|
|
典型开关频率 | 2 MHz |
|
|
效率 | 98 % |
|
|
最低工作温度 | -40 °C |
|
|
引脚数 | 27 |
|
|
SVHC | To Be Advised |
|
|
输入电压最大值 | 55 V |
|
|
最高工作温度 | 105 °C |
ECCN / UNSPSC
| 描述 | 值 |
|---|---|
| ECCN: | EAR99 |
| 计划交货期 B: | 8541210080 |
| HTSN: | 8541210095 |
